Description

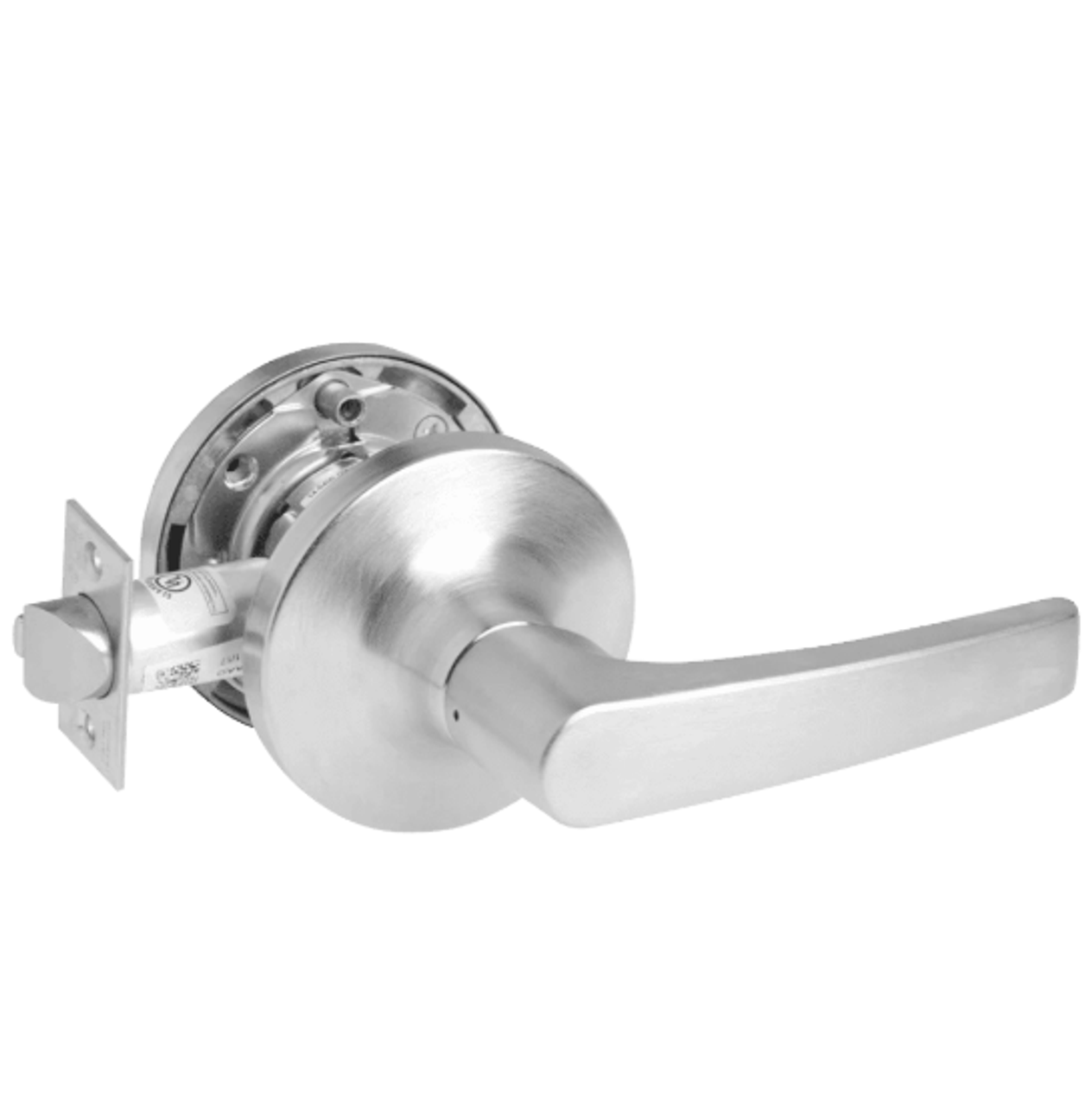

Accentra 5428LN Communicating Passage (Non-Key)

The Accentra 5428LN Communicating Passage Lever is a heavy-duty, non-keyed lever designed for twin communicating or exit doors where operation from one side is required. Ideal for spaces with limited room, this lever features a deadlocking latchbolt and single-lever operation for convenient access. Equipped with a blank rose, it is intended for use in rooms that have more than one entrance, ensuring safe and efficient passage between connected spaces.

Lever Options

• Standard Series
  • AU – Augusta, MO – Monroe, PB – Pacific Beach

Key Features

• Function: Communicating Passage (Non-Keyed) – F111
• Operation:
  • Single-lever operation for one-side access
  • Deadlocking latchbolt for added security
  • Blank rose for clean, minimalist design
• Construction: Heavy-duty Grade 1 performance for strength and durability
• Accessibility: ADA compliant for ease of use
• Warranty: 7-year mechanical warranty
• Applications: Twin communicating doors, exit doors, and spaces with limited room

Benefits

• Efficient one-side access for communicating rooms
• Deadlocking latchbolt enhances safety and prevents accidental locking
• Blank rose provides a clean and simple aesthetic
• Durable construction ensures long-term reliability in high-traffic areas
• Ideal for hotels, offices, and multi-entrance rooms where space is limited
• Certified ANSI/BHMA Grade 1 for heavy-duty performance

Specifications

• Brand: Accentra (Formerly Yale)
• Usage: Heavy Duty
• ANSI/BHMA Standard: A156.2, Series 4000 Grade 1
• Latch: 1/2″ throw – 1-1/8″ x 2-1/4″ face
• Backset: 2-3/4″
• Strike: 4-7/8″ x 1-1/4″ ASA/ANSI with curved lip (ANSI A115.2 prep)
• Handing: Non-Handed
• Door Thickness: 1-3/4″ to 2-1/4″
• ADA Compliance: Meets A117.1 Accessibility Code

Certifications

• ANSI/BHMA Grade 1 certified for heavy-duty commercial use
• Compliant with ANSI A156.2 (Series 4000) and ANSI A156.41 standards
• ADA and ICC A117.1 accessible design compliant
• UL/cUL fire-rated for up to 3 hours
• Florida Building Code approved (FL# 3063)
• NFPA 80 compliant for fire door applications
• Windstorm and impact resistant (ASTM E330, E1886, E1996)
• Certified to TAS 201, TAS 202, and TAS 203 standards
