Description

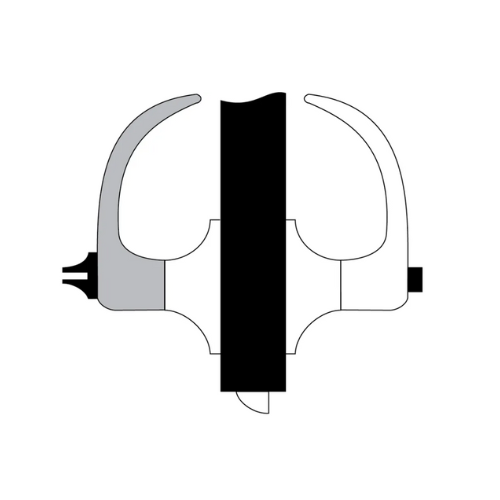

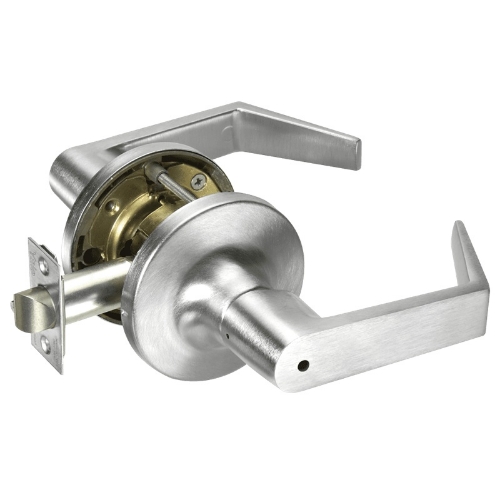

Accentra 5425LN Privacy Lock Lever (Non-Key)

The Accentra 5425LN Privacy Lock Lever is a robust, non-keyed privacy solution designed for bathrooms, bedrooms, and other interior privacy doors. Either lever operates the latchbolt unless the outside lever is locked by the inside pushbutton, which automatically releases when the inside lever is turned or the door is closed. The door can also be unlocked when needed via the outside turnbutton, and no emergency key is required. An optional flush turnbutton (“FTB”) is available for a sleek, low-profile look. In the locked position, lever handles are free-wheeling to prevent forced entry.

Lever Options

• Standard Series
  • AU – Augusta, MO – Monroe, PB – Pacific Beach

Key Features

• Function: Privacy Lock (Non-Keyed)
• Operation:
  • Either lever operates latchbolt unless locked by inside pushbutton
  • Automatic release when inside lever is turned or door is closed
  • Outside turnbutton allows unlocking if necessary
  • Optional flush turnbutton available (FTB)
  • Free-wheeling levers in locked position for added security
• Construction: Heavy-duty Grade 1 performance for durability
• Accessibility: ADA compliant for ease of use
• Warranty: 7-year mechanical warranty
• Applications: Bathrooms, bedrooms, and other privacy-required interior doors

Benefits

• Provides secure privacy without the need for a keyed lock
• Automatic unlocking enhances safety and convenience
• Free-wheeling lever design resists vandalism and forced entry
• Optional flush turnbutton adds a modern, low-profile aesthetic
• Durable construction ensures long-term reliability in high-use areas
• Certified ANSI/BHMA Grade 1 for heavy-duty performance
• Ideal for residential and commercial privacy applications

Specifications

• Brand: Accentra (Formerly Yale)
• Usage: Heavy Duty
• ANSI/BHMA Standard: A156.2, Series 4000 Grade 1
• Latch: 1/2″ throw – 1-1/8″ x 2-1/4″ face
• Backset: 2-3/4″
• Strike: 4-7/8″ x 1-1/4″ ASA/ANSI with curved lip (ANSI A115.2 prep)
• Handing: Non-Handed
• Door Thickness: 1-3/4″ to 2-1/4″
• ADA Compliance: Meets A117.1 Accessibility Code

Certifications

• ANSI/BHMA Grade 1 certified for heavy-duty commercial use
• Compliant with ANSI A156.2 (Series 4000) and ANSI A156.41 standards
• ADA and ICC A117.1 accessible design compliant
• UL/cUL fire-rated for up to 3 hours
• Florida Building Code approved (FL# 3063)
• NFPA 80 compliant for fire door applications
• Windstorm and impact resistant (ASTM E330, E1886, E1996)
• Certified to TAS 201, TAS 202, and TAS 203 standards
