Description

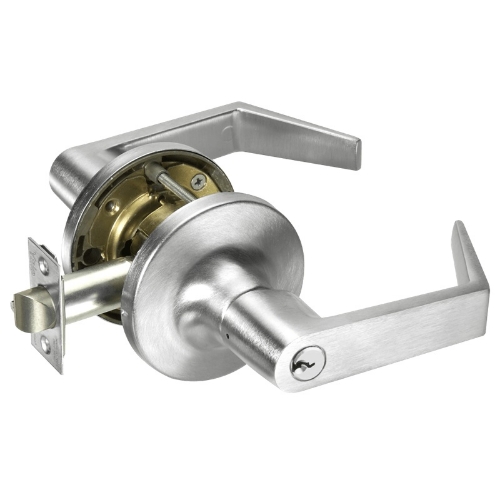

Accentra 5421LN Communicating Lever

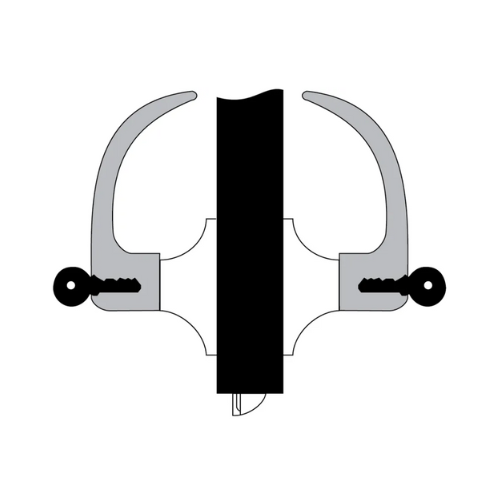

The Accentra 5421LN Communicating Lever is designed for communicating doors or store entrance doors where secure access and convenient operation are required. It features a deadlocking latchbolt, with either lever operating the latch unless a key in either lever locks or unlocks it independently. This lever is intended for offices or rooms with multiple entrances and is not compatible with IC core cylinders. Free-wheeling lever handles in the locked position enhance security and resist forced entry.

Lever Options

• Standard Series
  • AU – Augusta, MO – Monroe, PB – Pacific Beach, B AU – Augusta

Key Features

• Function: Communicating – F80
• Operation:
  • Deadlocking latchbolt ensures reliable security
  • Either lever operates latchbolt unless locked/unlocked by key independently
  • Designed for offices or rooms with multiple entries
  • Free-wheeling lever handles prevent forced rotation in locked mode
• Construction: Heavy-duty Grade 1 performance for strength and durability
• Accessibility: ADA compliant for ease of use
• Warranty: 7-year mechanical warranty
• Applications: Communicating doors in offices, stores, or rooms requiring controlled access

Benefits

• Provides secure and convenient access for multiple-entry rooms
• Free-wheeling levers resist tampering and forced entry
• Deadlocking latchbolt adds dependable security
• Durable Grade 1 construction ensures long-term performance
• Easy installation and broad door compatibility

Specifications

• Brand: Accentra (Formerly Yale)
• Usage: Heavy Duty
• ANSI/BHMA Standard: A156.2, Series 4000 Grade 1
• Latch: 1/2″ throw – 1-1/8″ x 2-1/4″ face
• Backset: 2-3/4″
• Strike: 4-7/8″ x 1-1/4″ ASA/ANSI with curved lip (ANSI A115.2 prep)
• Handing: Non-Handed
• Door Thickness: 1-3/4″ to 2-1/4″
• ADA Compliance: Meets A117.1 Accessibility Code

Certifications

• ANSI/BHMA Grade 1 certified for heavy-duty commercial use
• Compliant with ANSI A156.2 (Series 4000) and ANSI A156.41 standards
• ADA and ICC A117.1 accessible design compliant
• UL/cUL fire-rated for up to 3 hours
• Florida Building Code approved (FL# 3063)
• NFPA 80 compliant for fire door applications
• Windstorm and impact resistant (ASTM E330, E1886, E1996)
• Certified to TAS 201, TAS 202, and TAS 203 standards
