Description

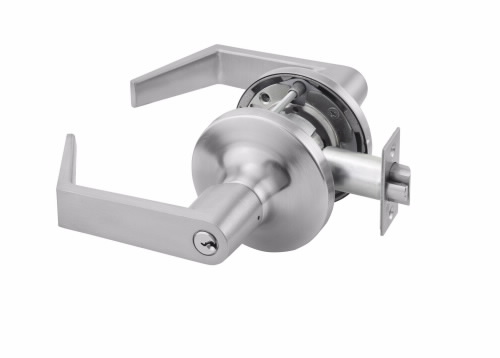

Accentra 5408LN Classroom Lever

The Accentra 5408LN Classroom Lever is a heavy-duty keyed lever built for classrooms and utility doors, offering controlled access with a deadlocking latchbolt and always-active inside lever for safe exit.

Lever Options

• Standard Series
  • AU – Augusta, MO – Monroe, PB – Pacific Beach, B AU – Augusta

Key Features

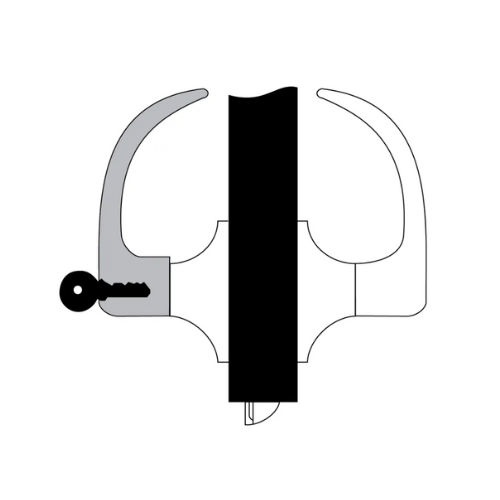

• Function: Classroom – F84
• Operation:
  • Either lever operates latchbolt unless outside lever is locked by key
  • Deadlocking latchbolt for enhanced security
  • Outside lever locked or unlocked by key only
  • Inside lever always active for safe egress
  • Free-wheeling levers in locked position for added protection
• Construction: Heavy-duty Grade 1 performance for strength and durability
• Accessibility: ADA compliant for ease of use
• Warranty: 7-year mechanical warranty
• Applications: Classrooms, utility rooms, and security-controlled interior doors

Benefits

• Provides controlled access while maintaining safe exit at all times
• Deadlocking latchbolt improves resistance against forced entry
• Free-wheeling lever design helps deter vandalism and misuse
• Durable construction supports long-term use in high-traffic areas
• Easy to operate for teachers and staff with keyed exterior control
• Certified ANSI/BHMA Grade 1 for heavy-duty performance
• Ideal for schools, offices, and commercial buildings

Specifications

• Brand: Accentra (Formerly Yale)
• Usage: Heavy Duty
• ANSI/BHMA Standard: A156.2, Series 4000 Grade 1
• Latch: 1/2″ throw – 1-1/8″ x 2-1/4″ face
• Backset: 2-3/4″
• Strike: 4-7/8″ x 1-1/4″ ASA/ANSI with curved lip (ANSI A115.2 prep)
• Handing: Non-Handed
• Door Thickness: 1-3/4″ to 2-1/4″
• ADA Compliance: Meets A117.1 Accessibility Code

Certifications

• ANSI/BHMA Grade 1 certified for heavy-duty commercial use
• Compliant with ANSI A156.2 (Series 4000) and ANSI A156.41 standards
• ADA and ICC A117.1 accessible design compliant
• UL/cUL fire-rated for up to 3 hours
• Florida Building Code approved (FL# 3063)
• NFPA 80 compliant for fire door applications
• Windstorm and impact resistant (ASTM E330, E1886, E1996)
• Certified to TAS 201, TAS 202, and TAS 203 standards
