Description

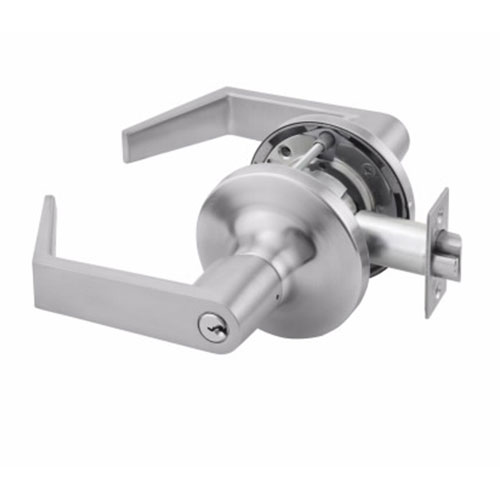

Accentra 5407LN Entry Lever

The Accentra 5407LN Entry Lever is a heavy-duty keyed lever for entrance and office doors, offering secure access with a deadlocking latchbolt. The outside lever locks from the inside with a turn button and unlocks automatically with key use or interior operation, while the inside lever always allows safe exit.

Lever Options

• Standard Series
  • AU – Augusta, MO – Monroe, PB – Pacific Beach, B AU – Augusta

Key Features

• Function: Entrance / Office – F109

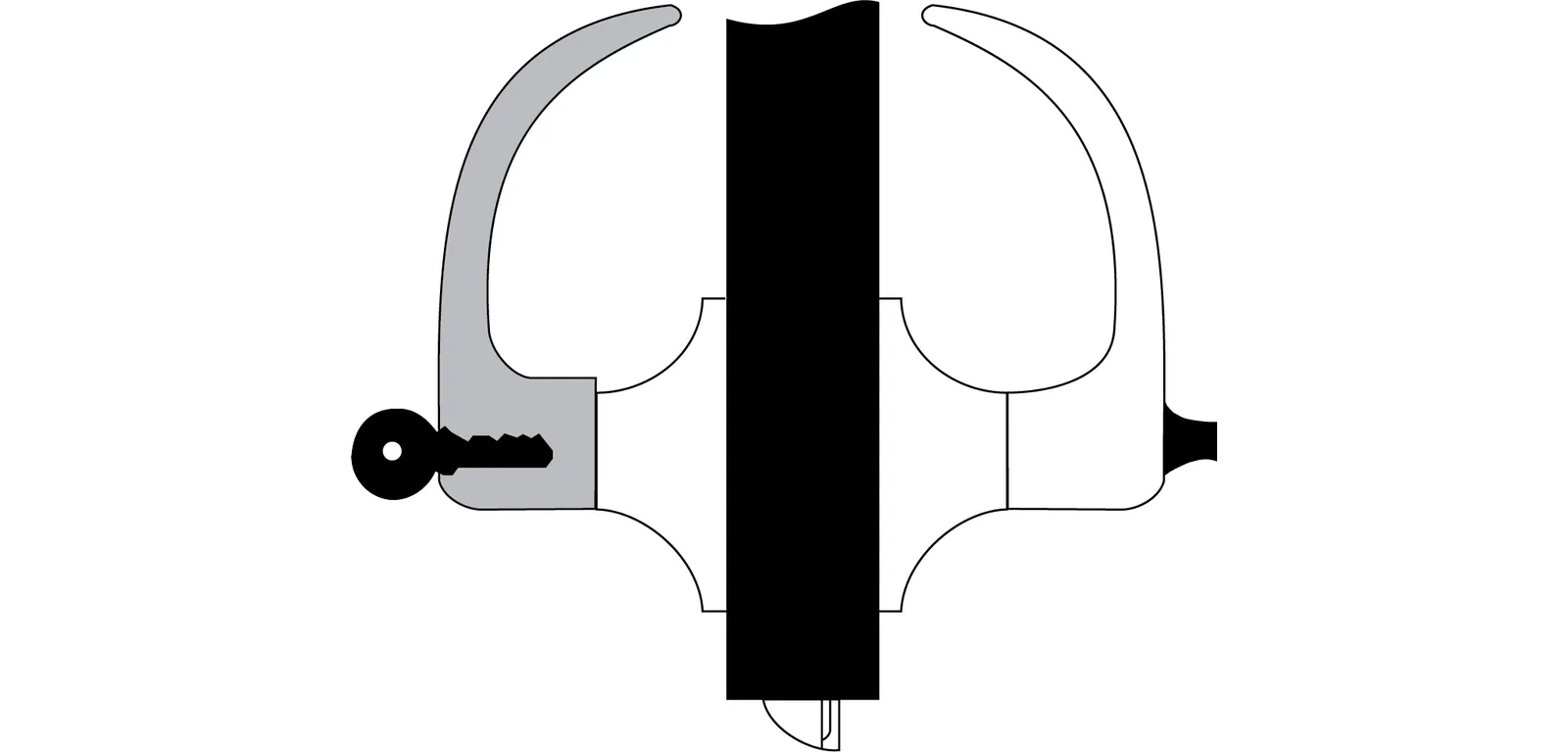

• Operation:
  • Either lever operates latchbolt unless outside lever is locked from inside
  • Deadlocking latchbolt for added security
  • Push-and-turn button locks outside lever
  • Automatic release when inside lever is turned or key is rotated
  • Outside lever can be held in locked position by rotating turn button 90° clockwise
  • Latchbolt operated by key in outside lever or by inside lever
  • Inside lever always active for safe egress
  • Free-wheeling levers in locked position for added protection
• Construction: Heavy-duty Grade 1 performance for strength and durability
• Accessibility: ADA compliant for ease of use
• Warranty: 7-year mechanical warranty
• Applications: Entrance doors, offices, and general home or commercial entry doors

Benefits

• Provides both keyed security and convenient interior control
• Deadlocking latchbolt enhances resistance to forced entry
• Automatic unlocking ensures safe and easy exit
• Durable construction supports long-term use in high-traffic areas
• Adjustable rose allows easy installation on various door thicknesses
• Ideal for residential and commercial entry applications

Specifications

• Brand: Accentra (Formerly Yale)
• Usage: Heavy Duty
• ANSI/BHMA Standard: A156.2, Series 4000 Grade 1
• Latch: 1/2″ throw – 1-1/8″ x 2-1/4″ face
• Backset: 2-3/4″
• Strike: 4-7/8″ x 1-1/4″ ASA/ANSI with curved lip (ANSI A115.2 prep)
• Handing: Non-Handed
• Door Thickness: 1-3/4″ to 2-1/4″
• ADA Compliance: Meets A117.1 Accessibility Code

Certifications

• ANSI/BHMA Grade 1 certified for heavy-duty commercial use
• Compliant with ANSI A156.2 (Series 4000) and ANSI A156.41 standards
• ADA and ICC A117.1 accessible design compliant
• UL/cUL fire-rated for up to 3 hours
• Florida Building Code approved (FL# 3063)
• NFPA 80 compliant for fire door applications
• Windstorm and impact resistant (ASTM E330, E1886, E1996)
• Certified to TAS 201, TAS 202, and TAS 203 standards
