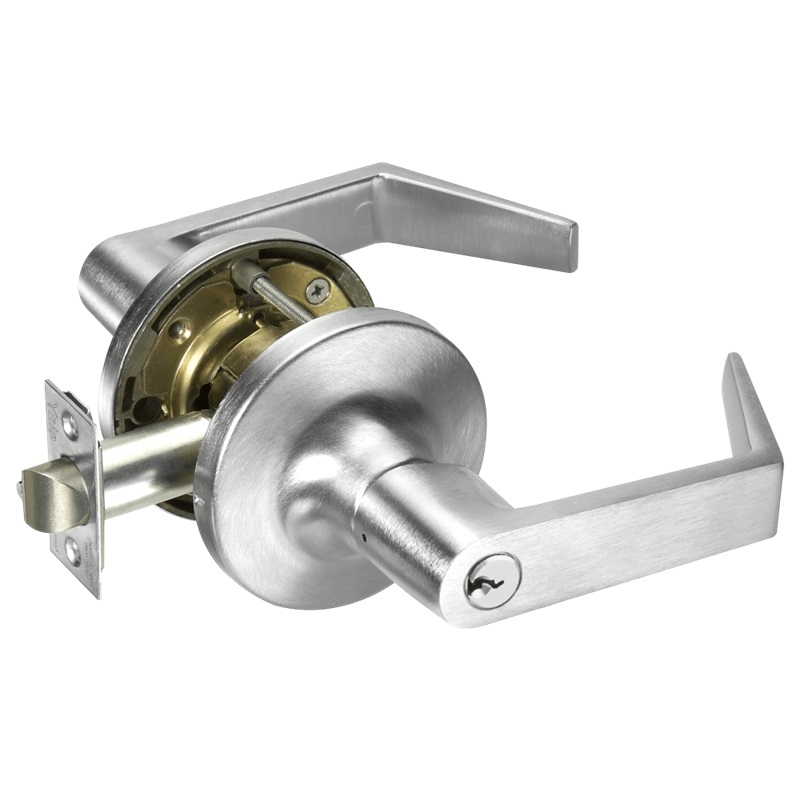

Accentra 5404LN Entry Lever

The Accentra 5404LN is a heavy-duty keyed entry lever ideal for office and entrance doors. It features a deadlocking latchbolt, with either lever operating the latch unless the outside lever is locked from inside via the pushbutton. The outside lever automatically unlocks when the inside lever is turned or the key is used, while the inside lever always allows safe exit. Free-wheeling levers in the locked position enhance security and resist vandalism.

Lever Options

• Standard Series
  • AU – Augusta, MO – Monroe, PB – Pacific Beach, B AU – Augusta

Key Features

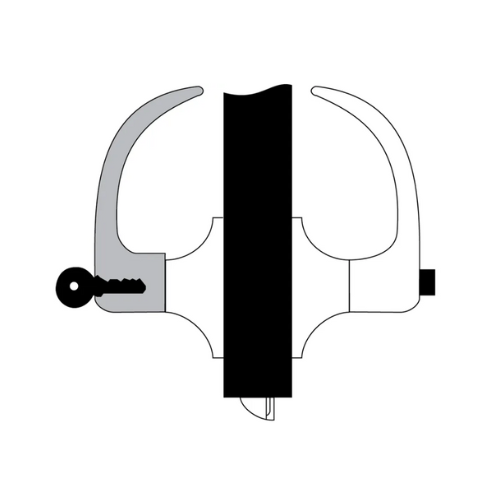

• Function: Entry, Office – F82
• Operation:
  • Either lever operates latchbolt unless outside lever is locked from inside
  • Deadlocking latchbolt for added security
  • Pushbutton on inside lever locks outside lever
  • Automatic release when inside lever is turned or key is rotated
  • Latchbolt operated by key in outside lever or by inside lever
  • Inside lever always active for safe egress
  • Free-wheeling levers in locked position for added protection
• Construction: Heavy-duty Grade 1 performance for strength and durability
• Accessibility: ADA compliant for ease of use
• Warranty: 7-year mechanical warranty
• Applications: Entrance doors, office doors, and general access interior or exterior doors

Benefits

• Provides secure keyed access while allowing quick interior control
• Free-wheeling lever design helps deter vandalism and misuse
• Automatic unlocking ensures safe and easy exit
• Durable construction supports long-term use in high-traffic areas
• Adjustable rose allows easy installation on various door thicknesses
• Certified ANSI/BHMA Grade 1 for heavy-duty performance
• Ideal for residential and commercial entry applications

Specifications

• Brand: Accentra (Formerly Yale)
• Usage: Heavy Duty
• ANSI/BHMA Standard: A156.2, Series 4000 Grade 1
• Latch: 1/2″ throw – 1-1/8″ x 2-1/4″ face
• Backset: 2-3/4″
• Strike: 4-7/8″ x 1-1/4″ ASA/ANSI with curved lip (ANSI A115.2 prep)
• Handing: Non-Handed
• Door Thickness: 1-3/4″ to 2-1/4″
• ADA Compliance: Meets A117.1 Accessibility Code

Certifications

• ANSI/BHMA Grade 1 certified for heavy-duty commercial use
• Compliant with ANSI A156.2 (Series 4000) and ANSI A156.41 standards
• ADA and ICC A117.1 accessible design compliant
• UL/cUL fire-rated for up to 3 hours
• Florida Building Code approved (FL# 3063)
• NFPA 80 compliant for fire door applications
• Windstorm and impact resistant (ASTM E330, E1886, E1996)
• Certified to TAS 201, TAS 202, and TAS 203 standards
