Description

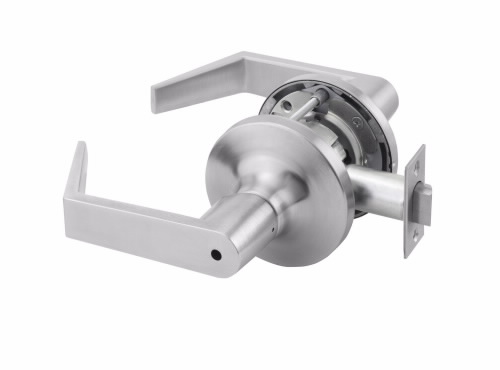

Accentra 5402LN Privacy Lever (Non-Key)

The Accentra 5402LN Privacy Lever is a heavy-duty, non-keyed privacy lever designed for bathroom, bedroom, and other interior doors requiring secure privacy without the use of a traditional key. Either lever operates the latchbolt unless the outside lever is locked by the convenient pushbutton on the inside. The lock automatically releases when the inside lever is turned or when the door is closed, ensuring safety and ease of use. An emergency release is built into the outside lever, with an emergency key included for quick access when needed.

Lever Options

• Standard Series
  • AU – Augusta, MO – Monroe, PB – Pacific Beach

Key Features

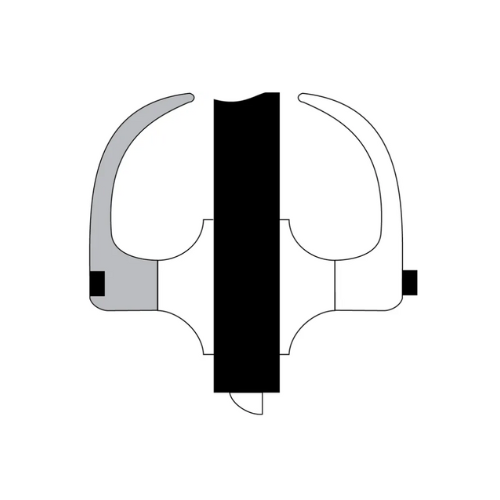

• Function: Privacy Bath/Bedroom (Non-Keyed) – F76A
• Operation:
  • Either lever operates the latchbolt unless locked by inside pushbutton
  • Automatic release when inside lever is turned or door is closed
  • Emergency release built into the outside lever
  • Emergency key included (PN 14-5302-1053-048)
  • Free-wheeling levers in locked position for added security
  • Inside lever always active for safe exit
• Construction: Heavy-duty Grade 1 performance for strength and durability
• Accessibility: ADA compliant for ease of use
• Warranty: 7-year mechanical warranty
• Applications: Bathrooms, bedrooms, and other privacy-required interior doors

Benefits

• Provides secure privacy without the need for a keyed lock
• Automatic unlocking improves safety in emergency situations
• Free-wheeling lever design helps prevent forced entry and vandalism
• Rugged construction ensures long-term durability in high-use areas
• Adjustable rose allows easy installation on various door thicknesses
• Certified ANSI/BHMA Grade 1 for heavy-duty performance
• Ideal for residential and commercial privacy applications

Specifications

• Brand: Accentra (Formerly Yale)
• Usage: Heavy Duty
• ANSI/BHMA Standard: A156.2, Series 4000 Grade 1
• Latch: 1/2″ throw – 1-1/8″ x 2-1/4″ face
• Backset: 2-3/4″
• Strike: 4-7/8″ x 1-1/4″ ASA/ANSI with curved lip (ANSI A115.2 prep)
• Handing: Non-Handed
• Door Thickness: 1-3/4″ to 2-1/4″
• ADA Compliance: Meets A117.1 Accessibility Code

Certifications

• ANSI/BHMA Grade 1 certified for heavy-duty commercial use
• Compliant with ANSI A156.2 (Series 4000) and ANSI A156.41 standards
• ADA and ICC A117.1 accessible design compliant
• UL/cUL fire-rated for up to 3 hours
• Florida Building Code approved (FL# 3063)
• NFPA 80 compliant for fire door applications
• Windstorm and impact resistant (ASTM E330, E1886, E1996)
• Certified to TAS 201, TAS 202, and TAS 203 standards
