Description

Accentra 5339LN Communicating Storeroom Lever

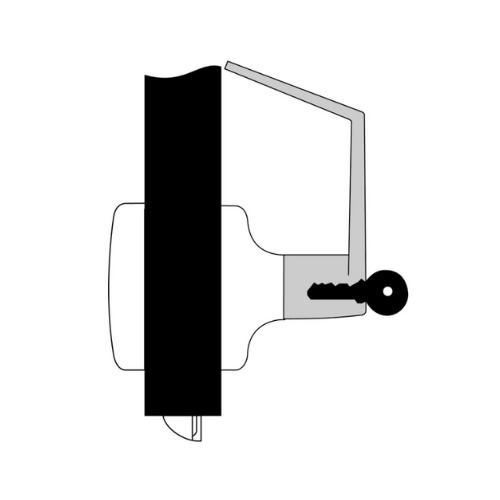

The Accentra 5339LN Communicating Storeroom Lever is built for twin communicating or closet doors where one-side operation is required or where space between doors is limited. It features a deadlocking latchbolt, with the latch operated by key only from the inside lever. The inside lever remains locked at all times, and the blank rose provides a clean, streamlined appearance. This function is intended for rooms with more than one entrance. Free-wheeling handles resist forced rotation and help prevent damage.
Note: Not available with I.C. core cylinders.

Lever Options

• Standard Series
  • AU – Augusta, MO – Monroe, PB – Pacific Beach, B AU – Augusta

Key Features

• Function: Communicating Storeroom – F112
• Operation:
  • Deadlocking latchbolt for dependable security
  • Latchbolt operates by key only in the inside lever
  • Inside lever always locked for controlled access
  • Designed for twin communicating doors or limited-space applications
  • Blank rose maintains a clean, unobtrusive appearance
  • Free-wheeling lever handles resist forced rotation and forced-entry attempts
• Construction: Grade 2 heavy-duty performance for long-term use
• Accessibility: ADA-compliant lever for accessible operation
• Warranty: 5-year mechanical warranty
• Applications: Ideal for twin communicating doors, closets, and rooms with more than one entrance where controlled, one-side operation is required

Benefits

• Ensures secure, one-sided access control on communicating doors
• Free-wheeling lever reduces tampering and prevents damage
• Durable construction provides dependable daily performance

Specifications

• ANSI/BHMA Code: A156.2
• Backset (Standard): 2 3/4″
• Optional Backsets: 2 3/8″ min, 6″ max
• Door Thickness: 1 3/8″ min to 2 1/4″ max
• Cylinder Format: Conventional, Large Format, Small Format
• Pins: 6-pin (where applicable)
• Handing: Non-handed
• Latchbolt Throw: 1/2″
• Strike: ANSI Curved Lip
• UL/ULC Listed: Yes

Certifications

• NSI/SDI 250.13
• ASTM E330
• Florida Building Code Approved (FL# 3063)
• ADA Compliant
• UL/cUL Fire-Rated Up to 3 Hours
• ASTM E1996
• ASTM E1886
• NFPA 80 Compliant
• TAS 201 / TAS 202 / TAS 203
• ICC A117.1
• ANSI/BHMA A156.2, Series 4000, Grade 2
• ANSI/BHMA A156.41
