Description

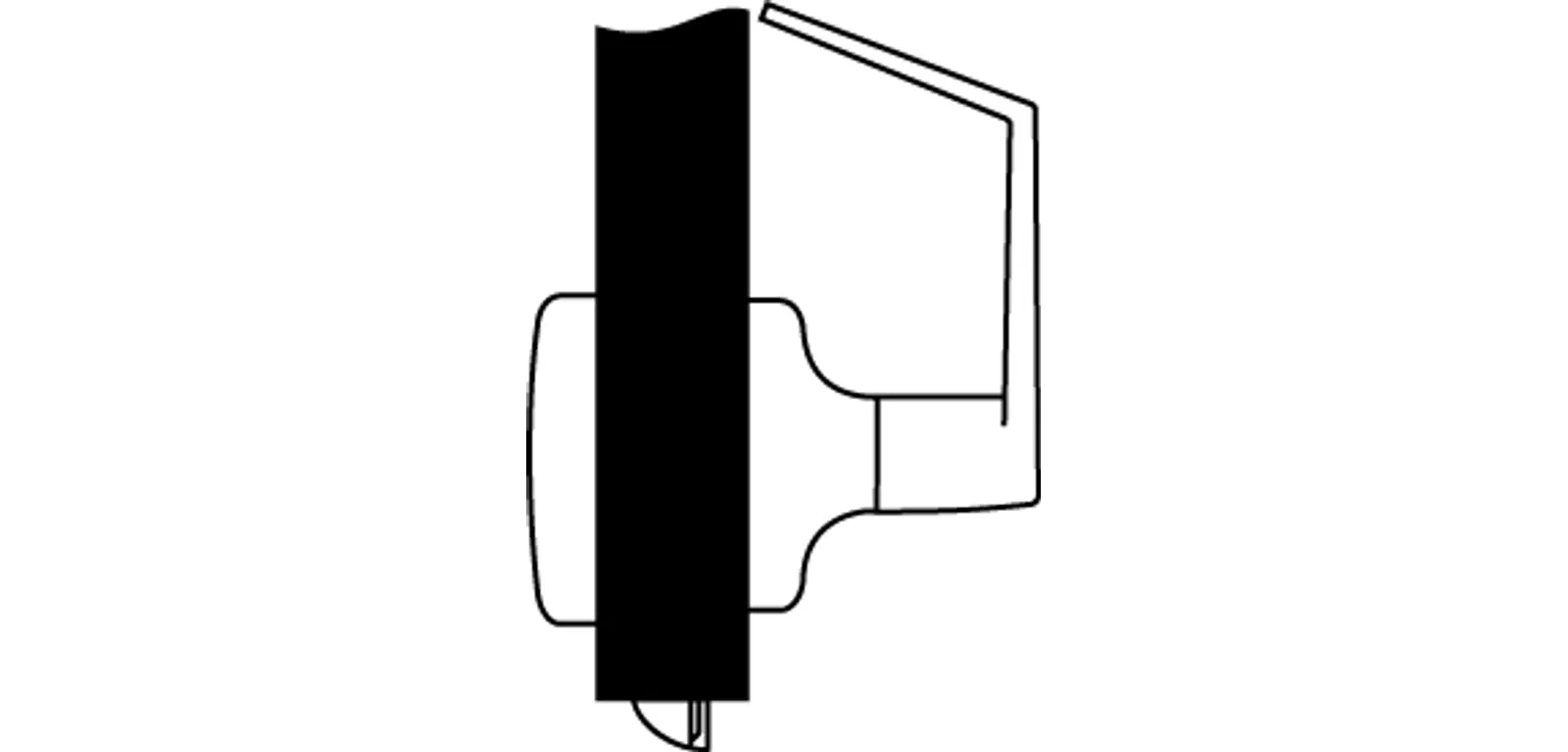

Accentra 5328LN Communicating Passage Lever (Non-Key)

The Accentra 5328LN Communicating Passage Lever is designed for communicating and exit doors that require operation from only one side. It features a deadlocking latchbolt for added security and includes a single active lever with a blank rose on the opposite side for clean installation where space is limited. Ideal for doors with multiple entrances, this lock ensures smooth operation while preventing access from the inactive side.

Lever Options

• Standard Series
  • AU – Augusta, MO – Monroe, PB – Pacific Beach

Key Features

• Function: Communicating Passage – F111
• Operation:
  • Deadlocking latchbolt enhances strength and security
  • Operated by one functional lever only
  • Blank rose on opposite side for streamlined appearance
  • Ideal for tight spaces near switch panels
• Construction: Certified Grade 2 for reliable everyday performance
• Accessibility: ADA-compliant lever for accessible operation
• Warranty: 5-year mechanical warranty
• Applications: Twin communicating doors, rooms with more than one entrance, and openings that require single-side operation

Benefits

• Provides controlled one-side access for communicating or secondary doors
• Deadlocking latchbolt boosts durability and tamper resistance
• Blank rose allows a clean, minimal look while conserving space
• Suitable for doors with multiple entry points and specialized layout needs

Specifications

• ANSI/BHMA Code: A156.2
• Backset (Standard): 2 3/4″
• Optional Backsets: 2 3/8″ min, 6″ max
• Door Thickness: 1 3/8″ min to 2 1/4″ max
• Cylinder Format: Conventional, Large Format, Small Format
• Pins: 6-pin (where applicable)
• Handing: Non-handed
• Latchbolt Throw: 1/2″
• Strike: ANSI Curved Lip
• UL/ULC Listed: Yes

Certifications

• NSI/SDI 250.13
• ASTM E330
• Florida Building Code Approved (FL# 3063)
• ADA Compliant
• UL/cUL Fire-Rated Up to 3 Hours
• ASTM E1996
• ASTM E1886
• NFPA 80 Compliant
• TAS 201 / TAS 202 / TAS 203
• ICC A117.1
• ANSI/BHMA A156.2, Series 4000, Grade 2
• ANSI/BHMA A156.41
