Description

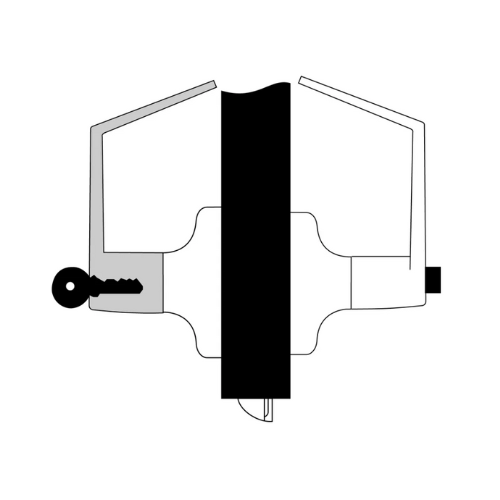

Accentra 5322LN Corridor Lever

The Accentra 5322LN Corridor Lever is ideal for corridors, dormitories, and other areas where controlled access and safe egress are required. It features a deadlocking latchbolt operated by either lever, except when the outside lever is locked by the inside push-button or by a key. The inside lever always remains active, and the push-button automatically releases when the inside lever is turned or the door is closed. When the outside lever is locked by key, it must be manually unlocked. Free-wheeling handles help prevent forced rotation and enhance security.

Lever Options

• Standard Series
  • AU – Augusta, MO – Monroe, PB – Pacific Beach, B AU – Augusta

Key Features

• Function: Corridor / Dormitory – F90
• Operation:
  • Deadlocking latchbolt provides reliable security
  • Either lever operates latchbolt unless outside lever is locked
  • Inside lever always active for safe egress
  • Push-button locks outside lever with automatic release when inside lever turns or door closes
  • Key-controlled lock disables automatic release, requires manual unlocking
  • Free-wheeling lever handles reduce forced rotation
• Construction: Grade 2 heavy-duty performance for long-term use
• Accessibility: ADA-compliant lever for accessible operation
• Warranty: 5-year mechanical warranty
• Applications:Corridors, dormitories, and rooms with multiple entries requiring controlled access

Benefits

• Provides secure corridor or dormitory access with flexible locking options
• Automatic push-button release prevents accidental lockouts
• Free-wheeling levers resist tampering and vandalism
• Durable construction ensures long-lasting, smooth operation

Specifications

• ANSI/BHMA Code: A156.2
• Backset (Standard): 2 3/4″
• Optional Backsets: 2 3/8″ min, 6″ max
• Door Thickness: 1 3/8″ min to 2 1/4″ max
• Cylinder Format: Conventional, Large Format, Small Format
• Pins: 6-pin (where applicable)
• Handing: Non-handed
• Latchbolt Throw: 1/2″
• Strike: ANSI Curved Lip
• UL/ULC Listed: Yes

Certifications

• NSI/SDI 250.13
• ASTM E330
• Florida Building Code Approved (FL# 3063)
• ADA Compliant
• UL/cUL Fire-Rated Up to 3 Hours
• ASTM E1996
• ASTM E1886
• NFPA 80 Compliant
• TAS 201 / TAS 202 / TAS 203
• ICC A117.1
• ANSI/BHMA A156.2, Series 4000, Grade 2
• ANSI/BHMA A156.41
