Description

Accentra 5318LN Intruder Classroom Security Lever

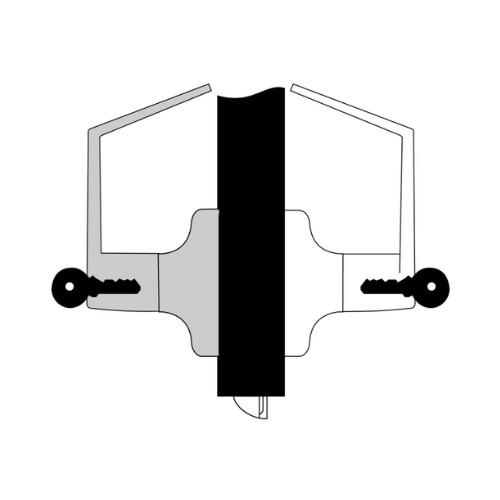

The Accentra 5318LN Intruder Classroom Security Lever is engineered for classrooms that require quick, secure lockdown capability without restricting safe egress. It features a deadlocking latchbolt, with either lever operating the latch except when the outside lever is locked by key from either side—allowing teachers or authorized staff to initiate a lockdown from inside the room. The outside lever remains locked after egress, while the inside lever stays active at all times to ensure safe and immediate exit in an emergency.
Note: Not available with I.C. core cylinders.

Lever Options

• Standard Series
  • AU – Augusta, MO – Monroe, PB – Pacific Beach, B AU – Augusta

Key Features

• Function: Intruder Classroom Security – F110
• Operation:
  • Deadlocking latchbolt provides strong, reliable security
  • Either lever operates the latch unless the outside lever is locked by key
  • Lockdown capability from inside or outside using a key
  • Outside lever remains locked after egress for continued protection
  • Inside lever always active to ensure immediate, safe exit
• Construction: Grade 2 heavy-duty performance for long-term use
• Accessibility: ADA-compliant lever for accessible operation
• Warranty: 5-year mechanical warranty
• Applications: Ideal for classrooms and educational facilities requiring fast lockdown ability paired with safe, code-compliant egress

Benefits

• Enables rapid, secure lockdown from inside the room
• Maintains safe and consistent egress for students and staff
• Durable design suited for daily use in high-demand school environments

Specifications

• ANSI/BHMA Code: A156.2
• Backset (Standard): 2 3/4″
• Optional Backsets: 2 3/8″ min, 6″ max
• Door Thickness: 1 3/8″ min to 2 1/4″ max
• Cylinder Format: Conventional, Large Format, Small Format
• Pins: 6-pin (where applicable)
• Handing: Non-handed
• Latchbolt Throw: 1/2″
• Strike: ANSI Curved Lip
• UL/ULC Listed: Yes

Certifications

• NSI/SDI 250.13
• ASTM E330
• Florida Building Code Approved (FL# 3063)
• ADA Compliant
• UL/cUL Fire-Rated Up to 3 Hours
• ASTM E1996
• ASTM E1886
• NFPA 80 Compliant
• TAS 201 / TAS 202 / TAS 203
• ICC A117.1
• ANSI/BHMA A156.2, Series 4000, Grade 2
• ANSI/BHMA A156.41
