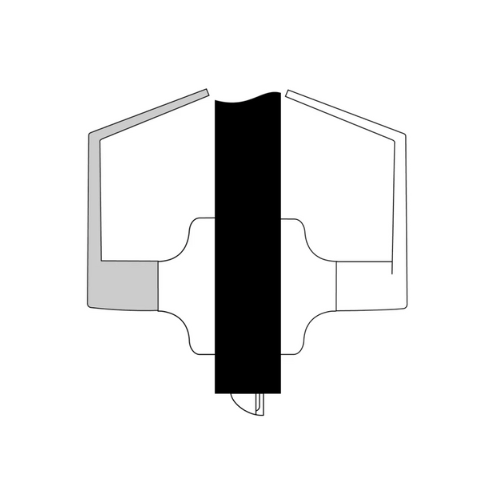

Accentra 5309LN Exit Latch Lever (Non-Key)

The Accentra 5309LN Exit Latch Lever is built for doors that require secure exit-only functionality with no outside entry. It features a durable deadlocking latchbolt that enhances security while ensuring the inside lever remains active at all times for safe and unrestricted egress. The outside lever stays locked to prevent unauthorized access, and the free-wheeling mechanism helps resist forced rotation, extending the life of the hardware in high-traffic environments.

Lever Options

• Standard Series
  • AU – Augusta, MO – Monroe, PB – Pacific Beach

Key Features

• Function: Exit Latch – F89
• Operation:
  • Deadlocking latchbolt provides added security
  • Outside lever always locked to restrict entry
  • Inside lever always active for safe, immediate exit
  • Free-wheeling lever design helps prevent forced rotation
• Construction: Certified Grade 2 for reliable everyday performance
• Accessibility: ADA-compliant lever for accessible operation
• Warranty: 5-year mechanical warranty
• Applications: Exit-only doors, service areas, restricted-access spaces, and secure interior pathways

Benefits

• Ensures exit-only control while preventing outside operation
• Deadlocking latchbolt improves resistance against tampering
• Free-wheeling mechanism reduces damage from attempted forced entry
• Provides smooth, reliable performance for long-term use

Specifications

• ANSI/BHMA Code: A156.2
• Backset (Standard): 2 3/4″
• Optional Backsets: 2 3/8″ min, 6″ max
• Door Thickness: 1 3/8″ min to 2 1/4″ max
• Cylinder Format: Conventional, Large Format, Small Format
• Pins: 6-pin (where applicable)
• Handing: Non-handed
• Latchbolt Throw: 1/2″
• Strike: ANSI Curved Lip
• UL/ULC Listed: Yes

Certifications

• NSI/SDI 250.13
• ASTM E330
• Florida Building Code Approved (FL# 3063)
• ADA Compliant
• UL/cUL Fire-Rated Up to 3 Hours
• ASTM E1996
• ASTM E1886
• NFPA 80 Compliant
• TAS 201 / TAS 202 / TAS 203
• ICC A117.1
• ANSI/BHMA A156.2, Series 4000, Grade 2
• ANSI/BHMA A156.41
