Description

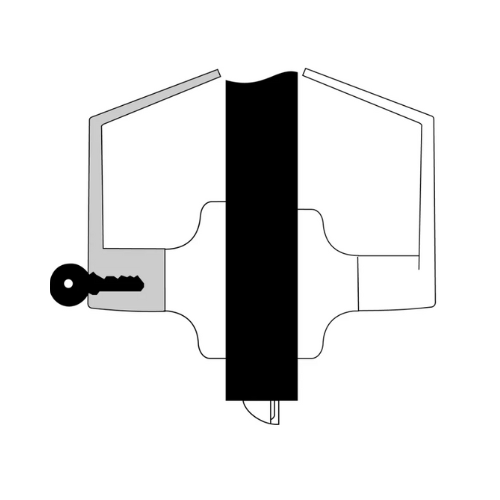

Accentra 5308LN Classroom Lever

The Accentra 5308LN Classroom Lever is designed for classrooms, utility rooms, and other areas where secure access and safe egress are essential. It features a deadlocking latchbolt operated by either lever unless the outside lever is locked by key. The inside lever always remains active, allowing quick exit, while the outside lever can be released with a key when necessary. Free-wheeling handles help prevent forced rotation and enhance security.

Lever Options

• Standard Series
  • AU – Augusta, MO – Monroe, PB – Pacific Beach, B AU – Augusta

Key Features

• Function: Classroom – F84
• Operation:
  • Deadlocking latchbolt provides reliable security
  • Either lever operates latchbolt unless the outside lever is locked by key
  • Key releases the outside lever when needed
  • Inside lever always active for safe egress
  • Free-wheeling lever design prevents forced rotation
• Construction: Grade 2 heavy-duty performance for long-term use
• Accessibility: ADA-compliant lever for accessible operation
• Warranty: 5-year mechanical warranty
• Applications: Classrooms, utility rooms, offices, and doors that require controlled access with safe exit

Benefits

• Provides dependable classroom security with key-controlled outside lever
• Always-active inside lever ensures safe and quick egress
• Free-wheeling handles resist tampering and damage
• Durable design supports high-traffic daily use

Specifications

• ANSI/BHMA Code: A156.2
• Backset (Standard): 2 3/4″
• Optional Backsets: 2 3/8″ min, 6″ max
• Door Thickness: 1 3/8″ min to 2 1/4″ max
• Cylinder Format: Conventional, Large Format, Small Format
• Pins: 6-pin (where applicable)
• Handing: Non-handed
• Latchbolt Throw: 1/2″
• Strike: ANSI Curved Lip
• UL/ULC Listed: Yes

Certifications

• NSI/SDI 250.13
• ASTM E330
• Florida Building Code Approved (FL# 3063)
• ADA Compliant
• UL/cUL Fire-Rated Up to 3 Hours
• ASTM E1996
• ASTM E1886
• NFPA 80 Compliant
• TAS 201 / TAS 202 / TAS 203
• ICC A117.1
• ANSI/BHMA A156.2, Series 4000, Grade 2
• ANSI/BHMA A156.41
