Description

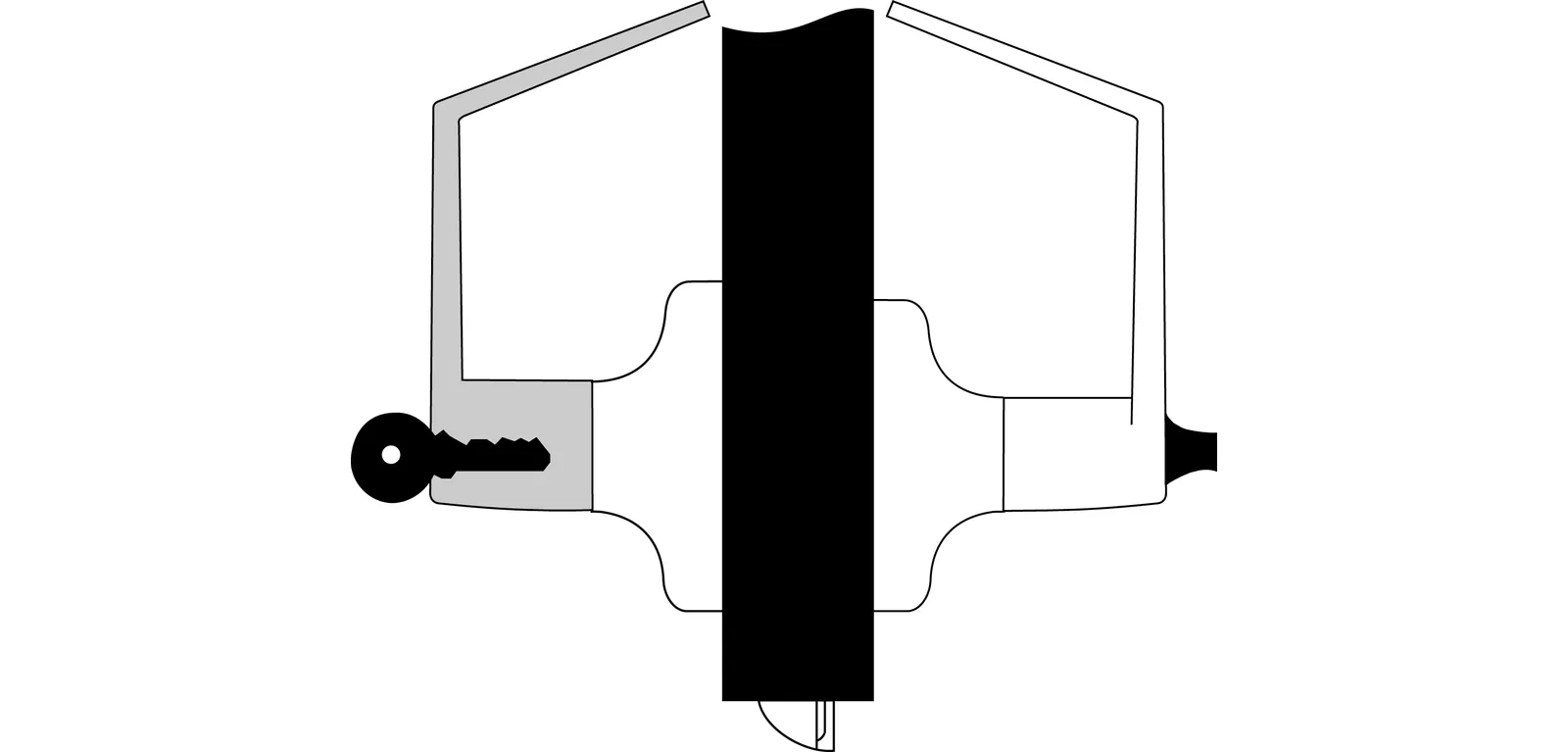

Accentra 5307LN Entry Lever

The Accentra 5307LN Entry Lever is built for entrance, office, and general-use doors that need secure locking with smooth everyday operation. Its deadlocking latchbolt offers reliable protection, while both levers operate the latch unless the outside lever is locked from the inside. The inside turn button allows quick locking and can be pushed and rotated 90° to hold the outside lever locked until manually released. The latchbolt can also be retracted by key from the outside or by rotating the always-active inside lever, ensuring simple and safe egress in any situation.

Lever Options

• Standard Series
  • AU – Augusta, MO – Monroe, PB – Pacific Beach, B AU – Augusta

Key Features

• Function: Entry / Office – F109
• Operation:
  • Deadlocking latchbolt provides added protection
  • Either lever operates latchbolt unless the inside button locks the outside lever
  • Push-button locking from inside; auto-release when inside lever turns or when key rotates outside
  • Turn button may be rotated 90° to keep the outside lever locked until manually released
  • Outside lever also unlocks with key operation
  • Inside lever is always active for safe exit
  • Free-wheeling lever design helps deter forced rotation and vandalism
• Construction: Grade 2 heavy-duty performance for dependable daily use
• Accessibility: ADA-compliant lever for accessible operation
• Warranty: 5-year mechanical warranty
• Applications: Entrance doors, office doors, interior doors needing secure lock/unlock control, and areas requiring both convenience and enhanced security

Benefits

• Provides flexible locking options with both momentary and retained lock modes
• Deadlocking latchbolt improves tamper resistance
• Free-wheeling lever enhances durability and reduces damage
• Designed for smooth operation, everyday reliability, and long-term performance

Specifications

• ANSI/BHMA Code: A156.2
• Backset (Standard): 2 3/4″
• Optional Backsets: 2 3/8″ min, 6″ max
• Door Thickness: 1 3/8″ min to 2 1/4″ max
• Cylinder Format: Conventional, Large Format, Small Format
• Pins: 6-pin (where applicable)
• Handing: Non-handed
• Latchbolt Throw: 1/2″
• Strike: ANSI Curved Lip
• UL/ULC Listed: Yes

Certifications

• NSI/SDI 250.13
• ASTM E330
• Florida Building Code Approved (FL# 3063)
• ADA Compliant
• UL/cUL Fire-Rated Up to 3 Hours
• ASTM E1996
• ASTM E1886
• NFPA 80 Compliant
• TAS 201 / TAS 202 / TAS 203
• ICC A117.1
• ANSI/BHMA A156.2, Series 4000, Grade 2
• ANSI/BHMA A156.41
