Description

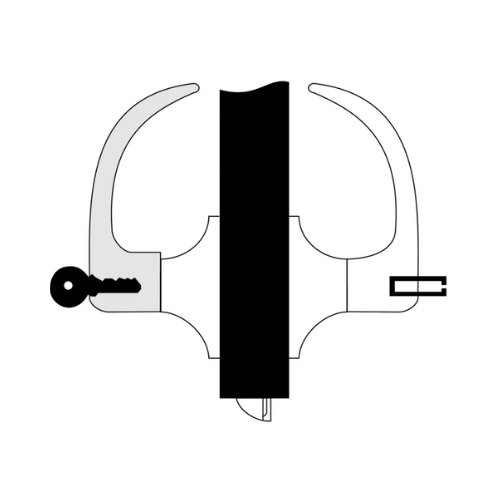

Accentra 5306LN Service Station Lever

The Accentra 5306LN Service Station Lever provides secure, reliable access for service stations, offices, and other commercial spaces. Its deadlocking latchbolt allows either lever to operate the latch, while the inside pushbutton locks the outside lever for controlled access. Additionally, the outside lever releases automatically when the inside lever is turned, the door is closed, or the key is used, unless the slotted pushbutton is rotated 90° to retain the lock. Meanwhile, the inside lever always remains active for quick and safe egress. Free-wheeling handles further reduce the risk of forced entry and vandalism.

Lever Options

• Standard Series
  • AU – Augusta, MO – Monroe, PB – Pacific Beach, B AU – Augusta

Key Features

• Function: Service Station – F92
• Operation:
  • Deadlocking latchbolt provides reliable security
  • Both levers operate the latchbolt for smooth use
  • Inside pushbutton locks outside lever
  • Automatic release when:
    • Inside lever is turned
    • Door is closed
    • Key is rotated in outside lever
  • Slotted pushbutton can be rotated 90° clockwise to retain outside lever locked
  • Inside lever always active for immediate egress
  • Free-wheeling lever design reduces forced rotation
• Construction: Grade 2 heavy-duty performance for long-term use
• Accessibility: ADA-compliant lever for accessible operation
• Warranty: 5-year mechanical warranty
• Applications: Service stations, offices, utility rooms, and doors requiring controlled access with safe exit.

Benefits

• Provides reliable control of outside lever access
• Automatic release prevents accidental lockouts
• Free-wheeling lever design resists tampering and vandalism
• Durable construction ensures smooth operation in high-traffic areas

Specifications

• ANSI/BHMA Code: A156.2
• Backset (Standard): 2 3/4″
• Optional Backsets: 2 3/8″ min, 6″ max
• Door Thickness: 1 3/8″ min to 2 1/4″ max
• Cylinder Format: Conventional, Large Format, Small Format
• Pins: 6-pin (where applicable)
• Handing: Non-handed
• Latchbolt Throw: 1/2″
• Strike: ANSI Curved Lip
• UL/ULC Listed: Yes

Certifications

• NSI/SDI 250.13
• ASTM E330
• Florida Building Code Approved (FL# 3063)
• ADA Compliant
• UL/cUL Fire-Rated Up to 3 Hours
• ASTM E1996
• ASTM E1886
• NFPA 80 Compliant
• TAS 201 / TAS 202 / TAS 203
• ICC A117.1
• ANSI/BHMA A156.2, Series 4000, Grade 2
• ANSI/BHMA A156.41
