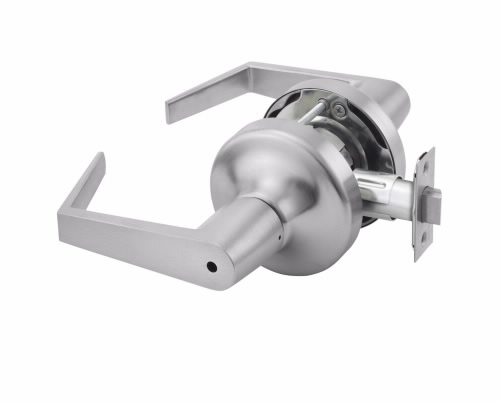

Accentra 5302LN Privacy Lever (Non-Key)

The Accentra 5302LN Privacy Lever provides secure, user-friendly privacy control for bathrooms, bedrooms, and other interior doors. It features a simple pushbutton locking system on the inside, while the outside lever includes an emergency release to allow quick access when needed. The latch automatically unlocks when the inside lever is turned or when the door closes, ensuring convenience and preventing accidental lock-ins. Its free-wheeling lever design also adds protection by reducing forced-entry attempts.

Lever Options

• Standard Series
  • AU – Augusta, MO – Monroe, PB – Pacific Beach

Key Features

• Function: Privacy / Bed & Bath – F76A
• Operation:
  • Deadlocking latchbolt offers reliable performance
  • Either lever operates the latchbolt in normal use
  • Inside pushbutton locks the outside lever for privacy
  • Button automatically releases when:
    • The inside lever is turned
    • The door closes
  • Emergency release on outside lever (emergency key included: P/N 14-5302-1053-048)
  • Inside lever always active for safe and easy exit
  • Free-wheeling lever design helps deter forced rotation
• Construction: Certified Grade 2 for reliable everyday performance
• Accessibility: ADA-compliant lever for accessible operation
• Warranty: 5-year mechanical warranty
• Applications: Bedrooms, bathrooms, and interior rooms requiring privacy without keyed security

Benefits

• Provides safe, convenient privacy with automatic release
• Ensures quick access during emergencies with the included release key
• Reduces tampering and damage with free-wheeling lever design
• Installs easily and fits standard door preparations
• Designed to handle frequent use with dependable, long-lasting performance

Specifications

• ANSI/BHMA Code: A156.2
• Backset (Standard): 2 3/4″
• Optional Backsets: 2 3/8″ min, 6″ max
• Door Thickness: 1 3/8″ min to 2 1/4″ max
• Cylinder Format: Conventional, Large Format, Small Format
• Pins: 6-pin (where applicable)
• Handing: Non-handed
• Latchbolt Throw: 1/2″
• Strike: ANSI Curved Lip
• UL/ULC Listed: Yes

Certifications

• NSI/SDI 250.13
• ASTM E330
• Florida Building Code Approved (FL# 3063)
• ADA Compliant
• UL/cUL Fire-Rated Up to 3 Hours
• ASTM E1996
• ASTM E1886
• NFPA 80 Compliant
• TAS 201 / TAS 202 / TAS 203
• ICC A117.1
• ANSI/BHMA A156.2, Series 4000, Grade 2
• ANSI/BHMA A156.41
