Description

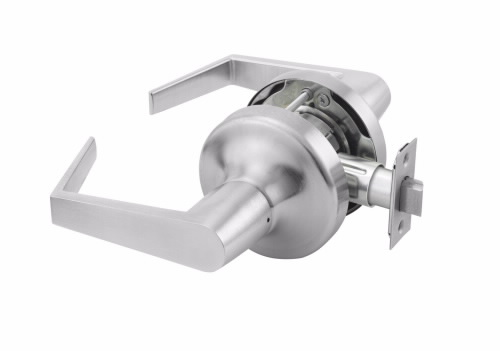

Accentra 5301LN Passage Lever (Non-Key)

The Accentra 5301LN Passage Lever offers smooth, always-active operation for doors that do not require locking. Both levers operate the latchbolt at all times, making it ideal for closets, hallways, and interior spaces where free access is needed. Built with a free-wheeling mechanism and heavy-duty internal components, this lever delivers long-lasting performance even in busy environments.

Lever Options

• Standard Series
  • AU – Augusta, MO – Monroe, PB – Pacific Beach

Key Features

• Function: Passage / Closet (Non-Keyed) – F75
• Operation:
  • Either lever operates the latchbolt at all times
  • Free-wheeling lever mechanism helps prevent vandalism
  • Heavy-duty torsion spring prevents lever sag
  • Adjustable to fit a wide range of door thicknesses
  • Thrubolt design increases strength and stability
• Construction: Certified Grade 2 for reliable everyday performance
• Accessibility: ADA-compliant lever for accessible operation
• Warranty: 5-year mechanical warranty
• Applications: Closets, passage doors, hallways, offices, and interior openings that require non-locking, always-active access

Benefits

• Withstands daily wear and resists damage in high-traffic areas
• Offers broad flexibility with numerous trims, finishes, and function options
• Backed by multiple safety, durability, and accessibility certifications
• Supports smooth installation with adjustable and non-handed design

Specifications

• ANSI/BHMA Code: A156.2
• Backset (Standard): 2 3/4″
• Optional Backsets: 2 3/8″ min, 6″ max
• Door Thickness: 1 3/8″ min to 2 1/4″ max
• Cylinder Format: Conventional, Large Format, Small Format
• Pins: 6-pin (where applicable)
• Handing: Non-handed
• Latchbolt Throw: 1/2″
• Strike: ANSI Curved Lip
• UL/ULC Listed: Yes

Certifications

• NSI/SDI 250.13
• ASTM E330
• Florida Building Code Approved (FL# 3063)
• ADA Compliant
• UL/cUL Fire-Rated Up to 3 Hours
• ASTM E1996
• ASTM E1886
• NFPA 80 Compliant
• TAS 201 / TAS 202 / TAS 203
• ICC A117.1
• ANSI/BHMA A156.2, Series 4000, Grade 2
• ANSI/BHMA A156.41
