Description

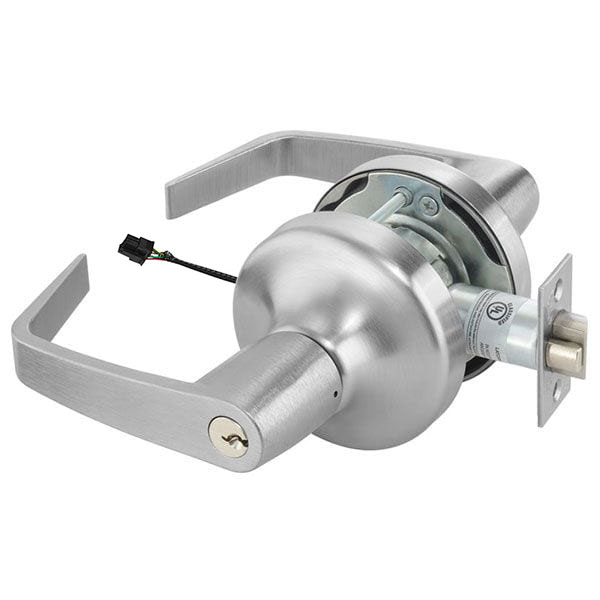

Accentra 4791LN Fail Secure Electrified Lever

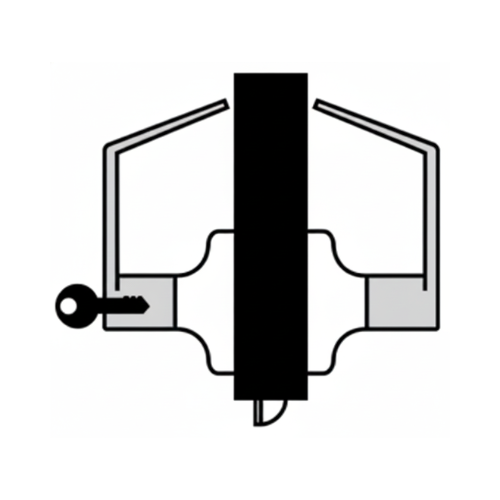

The Accentra 4791LN is a high-security fail secure electrified lever designed for reliable access control. Its deadlocking latchbolt operates by lever on either side, while power-off locks the outside lever. Power-on activates the outside lever for access, and the inside lever is always free for safe egress. The latchbolt can also be retracted by key when power is off for added flexibility.

Available Options

• Cylinder Override (Complete Lockset): Includes a mechanical key cylinder for backup manual access in addition to electronic operation.
• Lockbodies (Lockbody-Only Version): Includes only the internal locking mechanism without cylinder or external hardware; requires compatible power and access control.

Lever Options

• Standard Series
  • AU – Augusta, MO – Monroe, PB – Pacific Beach
• Reflections Series
  • TB – Hudson Lever, UB – Hudson Lever, B-AU – Augusta Lever

Key Features

• Function: Fail Secure Electrified Lever – Outside lever remains locked when power is off

• Operation:
  • Deadlocking latchbolt operates by lever on either side except when power is off, which locks the outside lever
  • Power on unlocks outside lever for access
  • Inside lever always free for safe egress
  • Latchbolt can be retracted by key when power is off (Cylinder Override)
  • 12V DC or 24V DC selectable operation
• Applications: Commercial doors, institutional areas, high-traffic access points
• Construction: Heavy-duty Grade 1 performance
• Handing: Non-handed for easier installation
• Compatibility: Requires compatible electrified accessories and power supplies; works with all 4700LN cylinder options
• Perfect For:Access-control doors, stairwells, corridors, schools, hospitals, and commercial facilities

Benefits

• Ensures strict access control with fail secure operation
• Enhances safety with inside lever always free for egress
• Allows keyed access when needed (Cylinder Override)
• Ideal for high-security areas, institutions, utility rooms, and restricted environments

Electrolynx®

Electrified 4700LN locks are equipped with ElectroLynx connectors. As a standard feature, these connectors link power from the incoming source to electrified locking products, including hinges, locks, exit devices, magnetic holders and strikes.

Note: Electrified door hardware with ElectroLynx connectors requires a compatible number of lead wires attached to the door hinge.

Specifications

Certifications

• ANSI/SDI 250.13
• UL/cUL Fire Rated (Up to 3 Hours)
• ADA Compliant
• NFPA 80
• ASTM E1886, E1996, E330
• Florida Building Code Approved (FL# 3063)
• TAS 201, 202, 203
• ICC A117.1
• ANSI/BHMA A156.2 (Grade 1)
• ANSI/BHMA A156.41
