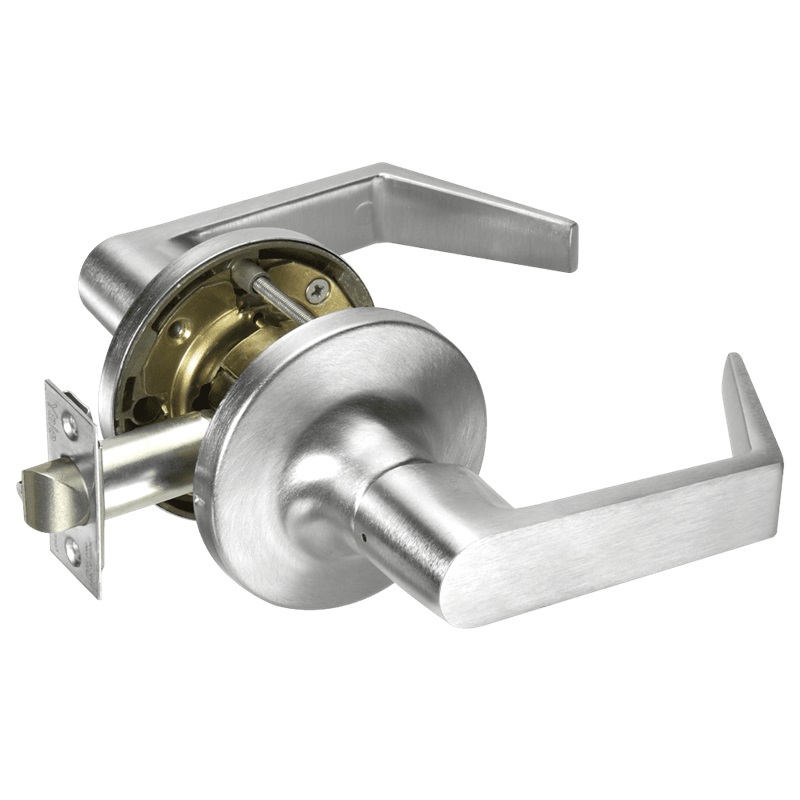

Accentra 4755LN-D Double Dummy Trim – Decorative, Durable, and Secure
The Accentra 4755LN-D Double Dummy Trim is designed for doors that require a decorative, non-operational lever on both sides. Additionally, its through-bolted construction ensures a secure and stable installation, providing long-lasting durability. As a result, it is an ideal choice for closets, hallways, and other interior applications where latch operation is unnecessary.
Lever Options
- Standard Series
- AU – Augusta, MO – Monroe, PB – Pacific Beach
- Reflections Series
- TB – Hudson Lever, UB – Hudson Lever
Key Features
- Function: Dummy Trim (Non-Operational)
- Operation:
- Rigid, fixed lever
- No latch or locking function
- Applications: Closets, cabinets, double-door inactive leafs, decorative door trim
- Construction: Durable design for long-term use
- Handing: Non-handed for effortless installation
Benefits
- Provides a clean, decorative appearance
- Installs easily in non-latching applications
- Durable rigid design suited for commercial or residential settings
- Ideal where a pull function or aesthetic lever is desired
Specifications
- ANSI/BHMA: A156.2, Series 4000, Grade 1
- Backset: 2-3/4″ standard (other options available)
- Cylinder Formats: Conventional, Large Format IC, Small Format IC
- Pins: 6-pin (when keyed cylinder format is used)
- Door Thickness: 1-3/4″ standard (1-3/8″ to 2-1/4″ range)
- Latchbolt Throw: 1/2″
- Strike: ANSI curved lip
- Handing: Non-handed
- Max Backset: 19″
- UL/ULC Listed: Yes, up to 3 hours
- Warranty: 5-year mechanical warranty
Certifications
- ANSI/SDI 250.13
- UL/cUL Fire Rated (Up to 3 Hours)
- ADA Compliant
- NFPA 80
- ASTM E1886, E1996, E330
- Florida Building Code Approved (FL# 3063)
- TAS 201, 202, 203
- ICC A117.1
- ANSI/BHMA A156.2 (Grade 1)
- ANSI/BHMA A156.41
