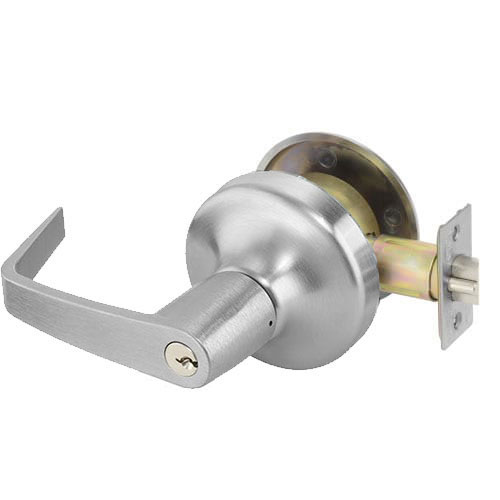

Accentra AU-4739LN Communicating Storeroom Lever | Augusta Lever
The Accentra AU-4739LN Communicating Storeroom Lever with Augusta trim is designed for twin communicating or closet doors where one-side operation is required, especially in areas with limited space between doors. Featuring the classic Augusta lever style, it combines elegance with durability, making it ideal for storerooms, utility areas, or multi-entry rooms.
Lever Options
- Standard Series – AU – Augusta
Available Lever Trims:
- AU-4739LN x 626 (Satin Chrome)
- AU-4739LN x BSP (Black Suede Powder Coat)
- AU-4739LN x 605 (Bright Brass)
- AU-4739LN x 606 (Satin Brass)
- AU-4739LN x 613E (Dark Oxidized Satin Bronze equivalent)
- AU-4739LN x 625 (Bright Chrome)
- AU-4739LN x 612 (Satin bronze)
- AU-4739LN x 619 (Satin Nickel Plated)
- AU-4739LN x WSP (White Suede Powder Coat)
Key Features

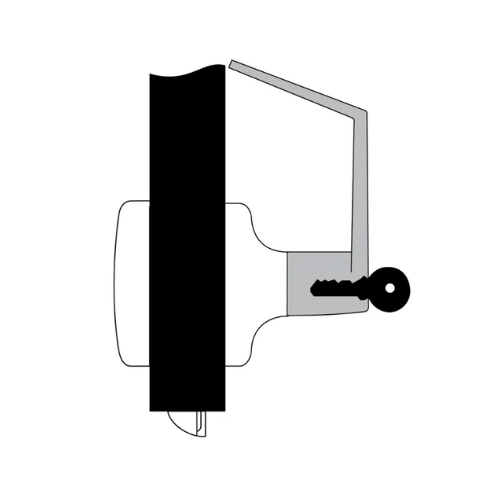

- Function: Communicating Storeroom – ANSI F112
- Operation:
- Latchbolt operates by key only in inside lever
- Inside lever always locked
- Free-wheeling lever prevents forced rotation damage
- Blank rose for simple installation
- Not compatible with I.C. core cylinders
- Applications: Twin communicating doors, closets, or multi-entry storerooms
- Construction: Grade 1 strength for durability
- Handing: Non-handed for easy installation
Benefits
- Provides secure one-side access for communicating doors
- Ensures reliable security and smooth functionality
- Free-wheeling lever enhances durability and prevents damage
- Ideal for storerooms, utility rooms, and multi-entry spaces
Specifications
- ANSI/BHMA: A156.2, Series 4000, Grade 1
- Backset: 2-3/4″ standard (other options available)
- Cylinder Formats: Conventional, Large Format IC, Small Format IC
- Pins: 6-pin (when keyed cylinder format is used)
- Door Thickness: 1-3/4″ standard (1-3/8″ to 2-1/4″ range)
- Latchbolt Throw: 1/2″
- Strike: ANSI curved lip
- Handing: Non-handed
- Max Backset: 19″
- UL/ULC Listed: Yes, up to 3 hours
- Warranty: 5-year mechanical warranty
Certifications
- ANSI/SDI 250.13
- UL/cUL Fire Rated (Up to 3 Hours)
- ADA Compliant
- NFPA 80
- ASTM E1886, E1996, E330
- Florida Building Code Approved (FL# 3063)
- TAS 201, 202, 203
- ICC A117.1
- ANSI/BHMA A156.2 (Grade 1)
- ANSI/BHMA A156.41
