Description

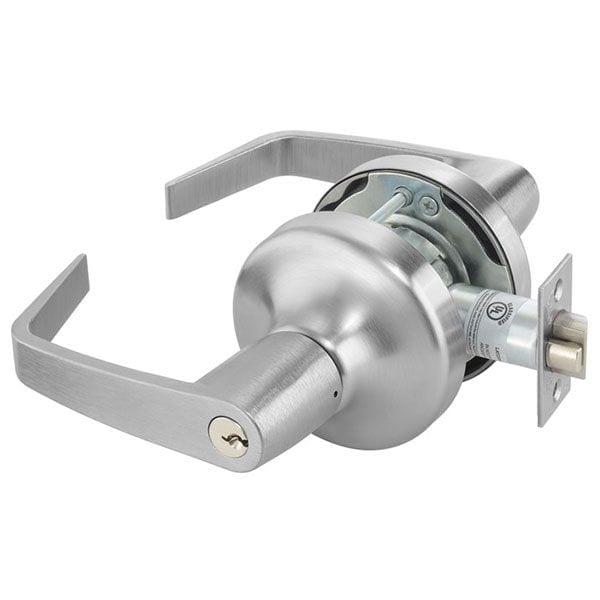

Accentra 4730LN Utility, Asylum, or Institutional Lever – Maximum Control for High-Security Environments
The Accentra 4730LN Lever delivers strict, reliable control for utility, asylum, and institutional settings where constant security is essential. It uses a deadlocking latchbolt that operates only by key from either side, ensuring that both levers remain locked at all times.
Additionally, the free-wheeling lever design helps prevent damage during forced-rotation attempts, further enhancing long-term durability. Since it is purpose-built for environments requiring secure, fully controlled access, this lever offers a dependable solution that prioritizes safety and stability.
Lever Options
- Standard Series
- AU – Augusta, MO – Monroe, PB – Pacific Beach
- Reflections Series
- TB – Hudson Lever, UB – Hudson Lever, B-AU – Augusta Lever
Key Features
- Function: Utility / Asylum / Institutional – ANSI F87
- Operation:
- Key controls the latchbolt from both sides
- Both levers remain locked at all times
- Free-wheeling lever prevents forced-entry rotation
- Applications: Utility rooms, institutional areas, behavioral health spaces, secure facilities
- Construction: Heavy-duty Grade 1 performance
- Handing: Non-handed for easier installation
- Compatibility: Not available with I.C. core cylinders
Benefits
- Ensures strict access control in high-security areas
- Enhances safety through key-only operation
- Protects against damage with free-wheeling lever design
- Ideal for institutions, utility rooms, and restricted environments
Specifications
- ANSI/BHMA: A156.2, Series 4000, Grade 1
- Backset: 2-3/4″ standard (other options available)
- Cylinder Formats: Conventional, Large Format IC, Small Format IC
- Pins: 6-pin (when keyed cylinder format is used)
- Door Thickness: 1-3/4″ standard (1-3/8″ to 2-1/4″ range)
- Latchbolt Throw: 1/2″
- Strike: ANSI curved lip
- Handing: Non-handed
- Max Backset: 19″
- UL/ULC Listed: Yes, up to 3 hours
- Warranty: 5-year mechanical warranty
Certifications
- ANSI/SDI 250.13
- UL/cUL Fire Rated (Up to 3 Hours)
- ADA Compliant
- NFPA 80
- ASTM E1886, E1996, E330
- Florida Building Code Approved (FL# 3063)
- TAS 201, 202, 203
- ICC A117.1
- ANSI/BHMA A156.2 (Grade 1)
- ANSI/BHMA A156.41
