Description

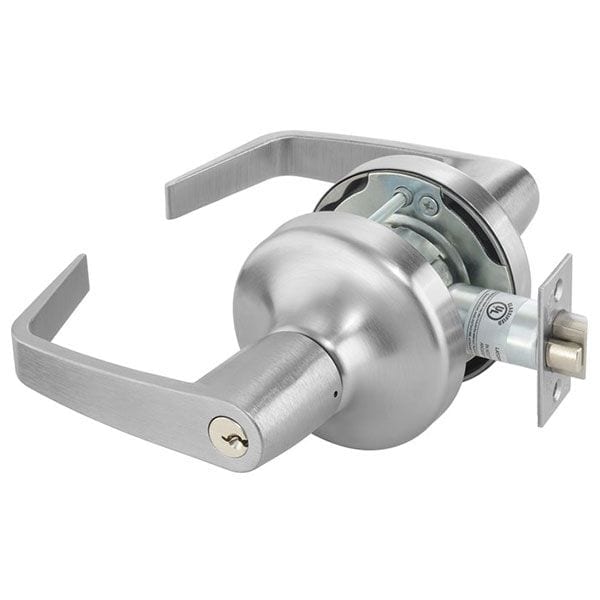

Accentra 4721LN Communicating Lever – Flexible Control for Multi-Entry Doors
The Accentra 4721LN Communicating Lever offers secure and independent access control for offices, storerooms, or spaces with multiple entry points. Because either lever operates the deadlocking latchbolt—unless locked by key from either side—it delivers flexible functionality suited for communicating door setups.
Moreover, each lever locks or unlocks independently, allowing tailored control for each room entrance. The free-wheeling lever design also provides additional protection against forced entry or torque damage. This function is ideal for areas where two rooms share a doorway but require separate security control.
Lever Options
- Standard Series
- AU – Augusta, MO – Monroe, PB – Pacific Beach
- Reflections Series
- TB – Hudson Lever, UB – Hudson Lever, B-AU – Augusta Lever
Key Features
- Function: Communicating – ANSI F80

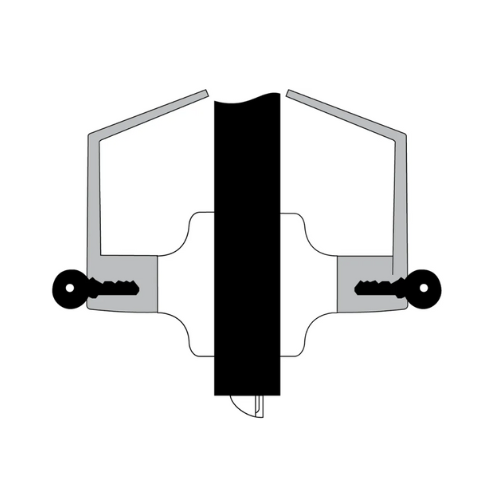

- Operation:
- Either lever operates the latchbolt
- Key in either lever locks/unlocks that lever independently
- Free-wheeling design prevents forced rotation
- Applications: Offices, shared rooms, communicating doors, multi-entry spaces
- Construction: Grade 1 strength for high durability
- Handing: Non-handed for simplified installation
- Compatibility: Not available with I.C. core cylinders
Benefits
- Allows independent security control from both sides
- Ensures smooth operation for shared or multi-entry access points
- Free-wheeling levers enhance durability and resist damage
- Ideal for commercial, office, and institutional environments
Specifications
- ANSI/BHMA: A156.2, Series 4000, Grade 1
- Backset: 2-3/4″ standard (other options available)
- Cylinder Formats: Conventional, Large Format IC, Small Format IC
- Pins: 6-pin (when keyed cylinder format is used)
- Door Thickness: 1-3/4″ standard (1-3/8″ to 2-1/4″ range)
- Latchbolt Throw: 1/2″
- Strike: ANSI curved lip
- Handing: Non-handed
- Max Backset: 19″
- UL/ULC Listed: Yes, up to 3 hours
- Warranty: 5-year mechanical warranty
Certifications
- ANSI/SDI 250.13
- UL/cUL Fire Rated (Up to 3 Hours)
- ADA Compliant
- NFPA 80
- ASTM E1886, E1996, E330
- Florida Building Code Approved (FL# 3063)
- TAS 201, 202, 203
- ICC A117.1
- ANSI/BHMA A156.2 (Grade 1)
- ANSI/BHMA A156.41
