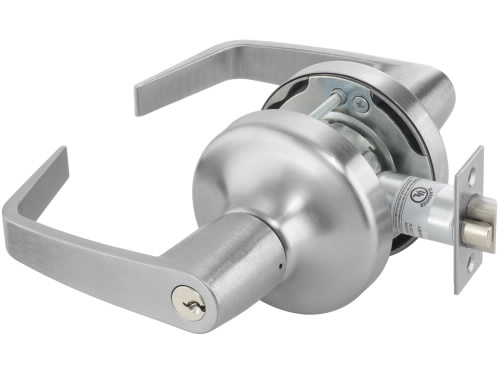

Accentra AU-4708LN Classroom Lever | Augusta Lever
The Accentra AU-4708LN Classroom Lever is designed for classrooms, utility rooms, and other controlled-access spaces, delivering reliable security while ensuring safe and immediate egress. Its deadlocking latchbolt provides dependable protection, and either lever operates the latch unless the outside lever is locked by key.
Lever Options
- Standard Series – AU – Augusta
Available Lever Trims:
- AU-4708LN x 626 (Satin Chrome)
- AU-4708LN x BSP (Black Suede Powder Coat)
- AU-4708LN x 605 (Bright Brass)
- AU-4708LN x 606 (Satin Brass)
- AU-4708LN x 613E (Dark Oxidized Satin Bronze equivalent)
- AU-4708LN x 625 (Bright Chrome)
- AU-4708LN x 612 (Satin bronze)
- AU-4708LN x 619 (Satin Nickel Plated)
- AU-4708LN x WSP (White Suede Powder Coat)
Key Features
- Function: Classroom – ANSI F84

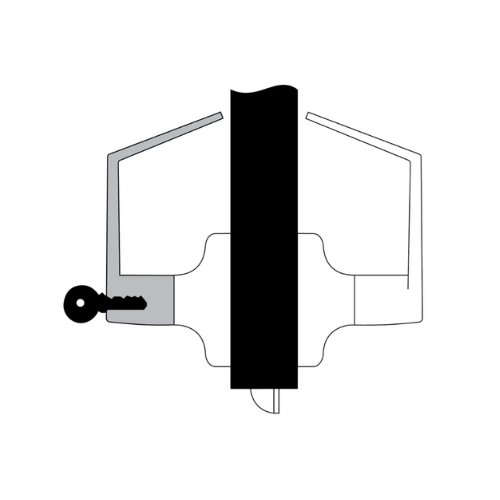

Operation:
- Inside lever always active for safe egress
- Outside lever locked/unlocked by key
- Either lever operates latchbolt when unlocked
- Free-wheeling outside lever when locked to prevent damage
- Applications: Classrooms, utility rooms, restricted-access areas
- Construction: Grade 1 durability for demanding environments
- Handing: Non-handed for easy installation
Benefits
- Provides secure key-controlled entry
- Ensures safe and constant interior egress
- Reduces damage risk with free-wheeling design
- Ideal for schools, institutions, and utility areas
Specifications
- ANSI/BHMA: A156.2, Series 4000, Grade 1
- Backset: 2-3/4″ standard (other options available)
- Cylinder Formats: Conventional, Large Format IC, Small Format IC
- Pins: 6-pin (when keyed cylinder format is used)
- Door Thickness: 1-3/4″ standard (1-3/8″ to 2-1/4″ range)
- Latchbolt Throw: 1/2″
- Strike: ANSI curved lip
- Handing: Non-handed
- Max Backset: 19″
- UL/ULC Listed: Yes, up to 3 hours
- Warranty: 5-year mechanical warranty
Certifications
- ANSI/SDI 250.13
- UL/cUL Fire Rated (Up to 3 Hours)
- ADA Compliant
- NFPA 80
- ASTM E1886, E1996, E330
- Florida Building Code Approved (FL# 3063)
- TAS 201, 202, 203
- ICC A117.1
- ANSI/BHMA A156.2 (Grade 1)
- ANSI/BHMA A156.41
