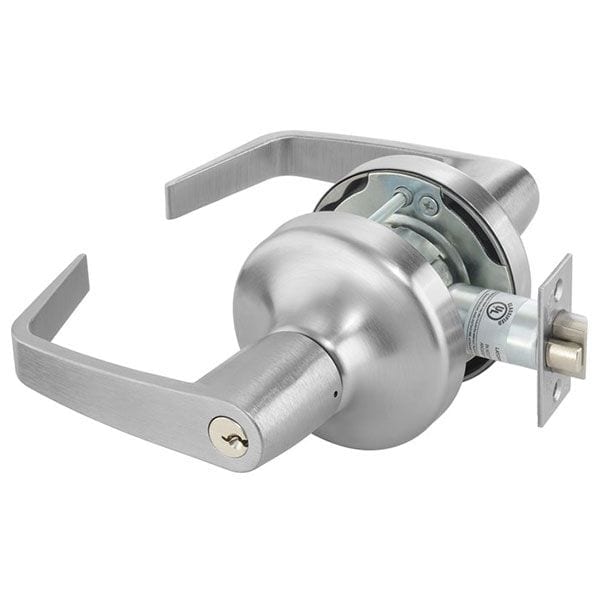

Accentra AU-4706LN Service Station Lever | Augusta Lever
The Accentra AU-4706LN Service Station Door Lever provides dependable access control for service station and utility doors while maintaining safe and convenient egress. Designed for high-traffic commercial environments, this Grade 1 lever lock combines durability, security, and smooth operation.
Either lever retracts the deadlocking latchbolt, allowing easy operation from both sides. The inside pushbutton locks the outside lever, restricting exterior access when required. For added convenience, the pushbutton automatically releases when the inside lever is turned, the door closes, or a key is used from the outside.
Lever Options
- Standard Series – AU – Augusta
Available Lever Trims:
- AU-4706LN x 626 (Satin Chrome)
- AU-4706LN x BSP (Black Suede Powder Coat)
- AU-4706LN x 605 (Bright Brass)
- AU-4706LN x 606 (Satin Brass)
- AU-4706LN x 613E (Dark Oxidized Satin Bronze equivalent)
- AU-4706LN x 625 (Bright Chrome)
- AU-4706LN x 612 (Satin bronze)
- AU-4706LN x 619 (Satin Nickel Plated)
- AU-4706LN x WSP (White Suede Powder Coat)
Key Features
- Function: Service Station – ANSI F92
- Operation:
- Either lever operates latchbolt
- Inside pushbutton locks outside lever
- Automatic release when inside lever turns, door closes, or key rotates outside lever
- Pushbutton can retain outside lever in locked position when rotated 90°
- Inside lever always active
- Free-wheeling lever prevents forced rotation damage
- Applications: Service stations, utility doors, high-traffic access areas
- Construction: Grade 1 strength for heavy-duty use
- Handing: Non-handed for easy installation
Benefits
- Provides controlled, key-access entry from outside
- Ensures safe egress from inside at all times
- Free-wheeling design prevents damage under heavy use
- Ideal for commercial, institutional, and service areas
Specifications
- ANSI/BHMA: A156.2, Series 4000, Grade 1
- Backset: 2-3/4″ standard (other options available)
- Cylinder Formats: Conventional, Large Format IC, Small Format IC
- Pins: 6-pin (when keyed cylinder format is used)
- Door Thickness: 1-3/4″ standard (1-3/8″ to 2-1/4″ range)
- Latchbolt Throw: 1/2″
- Strike: ANSI curved lip
- Handing: Non-handed
- Max Backset: 19″
- UL/ULC Listed: Yes, up to 3 hours
- Warranty: 5-year mechanical warranty
Certifications
- ANSI/SDI 250.13
- UL/cUL Fire Rated (Up to 3 Hours)
- ADA Compliant
- NFPA 80
- ASTM E1886, E1996, E330
- Florida Building Code Approved (FL# 3063)
- TAS 201, 202, 203
- ICC A117.1
- ANSI/BHMA A156.2 (Grade 1)
- ANSI/BHMA A156.41
