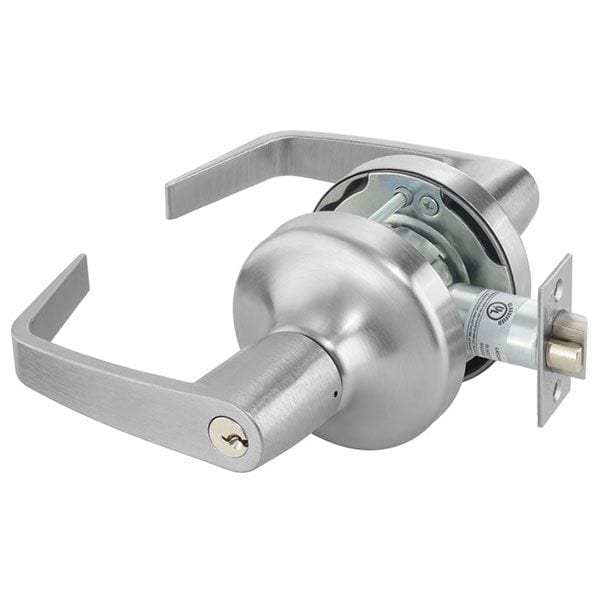

Accentra 4704LN Entry Lever – Reliable Security for Entrance and Office Doors

The Accentra 4704LN Entry Lever secures entrance and office doors while providing smooth daily operation. Additionally, users can operate either lever to retract the latchbolt unless the outside lever is locked from the inside, allowing flexible and convenient access.

Moreover, pressing the inside pushbutton locks the outside lever and automatically releases it when the inside lever turns or when the key rotates the outside lever, ensuring safe egress. Furthermore, users can operate the latchbolt with the key from outside or by turning the inside lever, and the inside lever remains active at all times. Finally, the free-wheeling lever prevents forced rotation damage, delivering long-lasting performance in high-traffic environments.

Lever Options

• Standard Series
  • AU – Augusta, MO – Monroe, PB – Pacific Beach
• Reflections Series
  • TB – Hudson Lever, UB – Hudson Lever, B-AU – Augusta Lever

Key Features

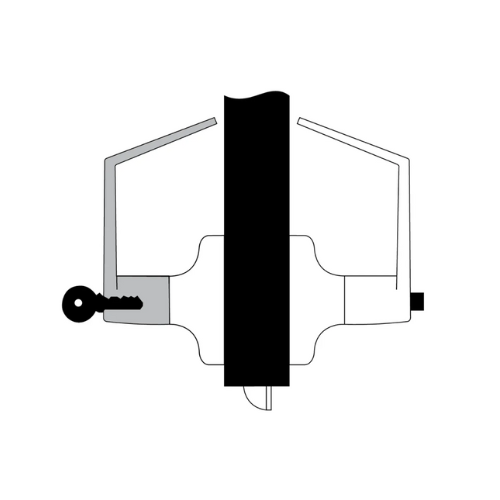

• Function: Entry / Office – ANSI F82A
• Operation:
  • Either lever operates latchbolt unless outside lever is locked
  • Inside pushbutton locks outside lever
  • Automatic release when inside lever is turned or key operates outside lever
  • Inside lever always active
  • Free-wheeling lever prevents damage when locked
• Applications: Entrance doors, offices, and general-use doors
• Construction: Grade 1 strength for heavy-duty use
• Handing: Non-handed for easy installation

Benefits

• Provides secure, key-controlled access from outside
• Ensures safe and constant interior egress
• Free-wheeling lever protects the lock from damage
• Ideal for residential, office, and commercial applications

Specifications

Certifications

• ANSI/SDI 250.13
• UL/cUL Fire Rated (Up to 3 Hours)
• ADA Compliant
• NFPA 80
• ASTM E1886, E1996, E330
• Florida Building Code Approved (FL# 3063)
• TAS 201, 202, 203
• ICC A117.1
• ANSI/BHMA A156.2 (Grade 1)
• ANSI/BHMA A156.41
