Description

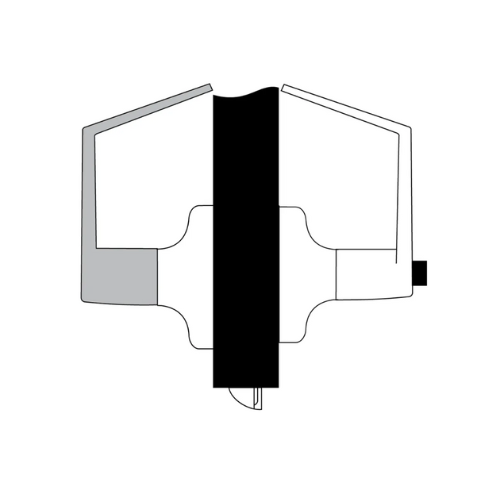

Accentra 4703LN Patio Lever (ANSI F77A) – Reliable Privacy & Controlled Entry for Patio and Interior Doors
The Accentra 4703LN Patio or Privacy Lever is designed for doors requiring limited outside access while still ensuring safe egress from the inside. Additionally, it includes a deadlocking latchbolt that enhances security and prevents tampering. Moreover, either lever operates the latchbolt unless the pushbutton inside is pressed, which allows quick and intuitive privacy control.
Furthermore, the pushbutton automatically releases when the inside lever turns or when the door closes, thereby improving safety and preventing accidental lock-ins. In addition, the inside lever remains active at all times to guarantee fast and reliable exit during emergencies. Likewise, the outside lever stays locked when privacy is engaged, helping maintain controlled access in both residential and commercial settings. Finally, the free-wheeling mechanism protects the lever from forced rotation, resulting in longer service life and consistent performance.
Lever Options
- Standard Series
- AU – Augusta, MO – Monroe, PB – Pacific Beach
- Reflections Series
- TB – Hudson Lever, UB – Hudson Lever
Key Features
- Function: Patio/Privacy – ANSI Function No. F77A
- Operation:
- Either lever operates latchbolt unless inside pushbutton is pressed
- Inside lever always active for safe and quick exit
- Pushbutton automatically releases when inside lever turns or door closes
- Security: Outside lever locks when privacy is engaged
- Safety: Free-wheeling lever prevents forced rotation damage
- Applications: Patio doors, privacy rooms, and limited-entry areas
- Construction: Grade 1 strength for heavy-duty commercial use
- Handing: Non-handed for simple installation
Benefits
- Provides controlled outside entry with secure inside egress
- Prevents accidental lock-ins with automatic release
- Durable free-wheeling design resists tampering
- Ideal for both residential and commercial settings
Specifications
- ANSI/BHMA: A156.2, Series 4000, Grade 1
- Backset: 2-3/4″ standard (other options available)
- Cylinder Formats: Conventional, Large Format IC, Small Format IC
- Pins: 6-pin (when keyed cylinder format is used)
- Door Thickness: 1-3/4″ standard (1-3/8″ to 2-1/4″ range)
- Latchbolt Throw: 1/2″
- Strike: ANSI curved lip
- Handing: Non-handed
- Max Backset: 19″
- UL/ULC Listed: Yes, up to 3 hours
- Warranty: 5-year mechanical warranty
Certifications
- ANSI/SDI 250.13
- UL/cUL Fire Rated (Up to 3 Hours)
- ADA Compliant
- NFPA 80
- ASTM E1886, E1996, E330
- Florida Building Code Approved (FL# 3063)
- TAS 201, 202, 203
- ICC A117.1
- ANSI/BHMA A156.2 (Grade 1)
- ANSI/BHMA A156.41
