Accentra 4702LN Privacy Lever (ANSI F76A) – Secure, User-Friendly Privacy for Bedrooms & Restrooms
The Accentra 4702LN Privacy Lever is built for lavatory, bedroom, and other privacy doors, offering smooth and reliable everyday operation. Either lever works the latchbolt unless the inside pushbutton is engaged, and the lock automatically releases when the inside lever turns or the door closes for added safety.
The outside lever can be opened with the included emergency key, making it suitable for both residential and commercial use. With an always-active inside lever and a free-wheeling mechanism that protects against forced rotation, it delivers dependable durability and secure performance for high-use privacy areas.
Lever Options
- Standard Series

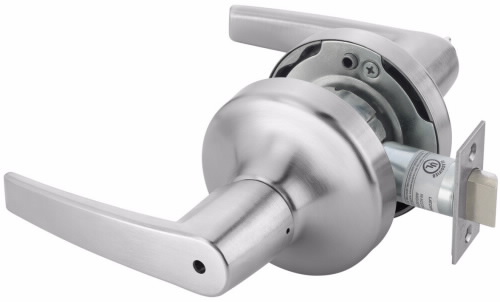

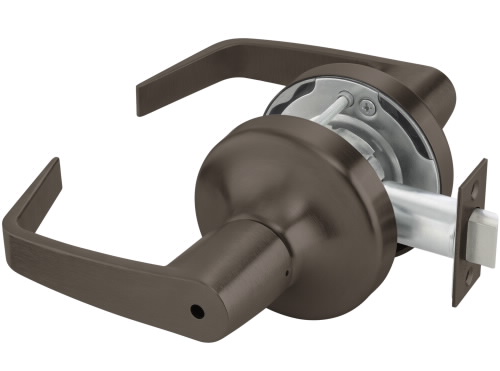

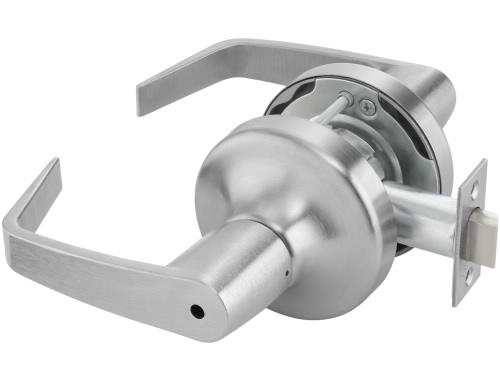

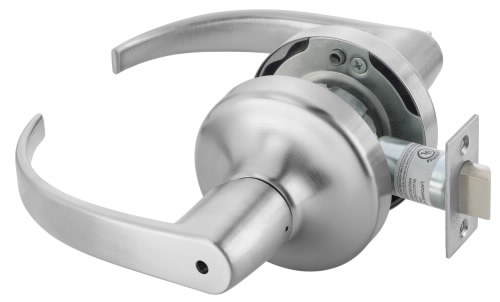

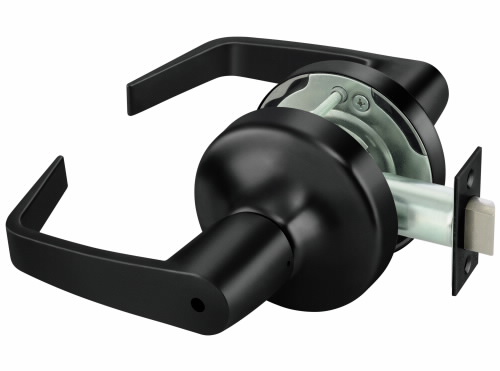

- AU – Augusta, MO – Monroe, PB – Pacific Beach
- Reflections Series

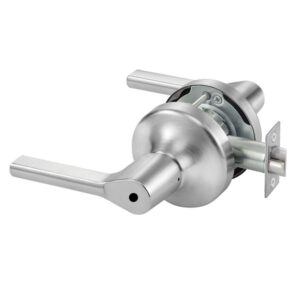

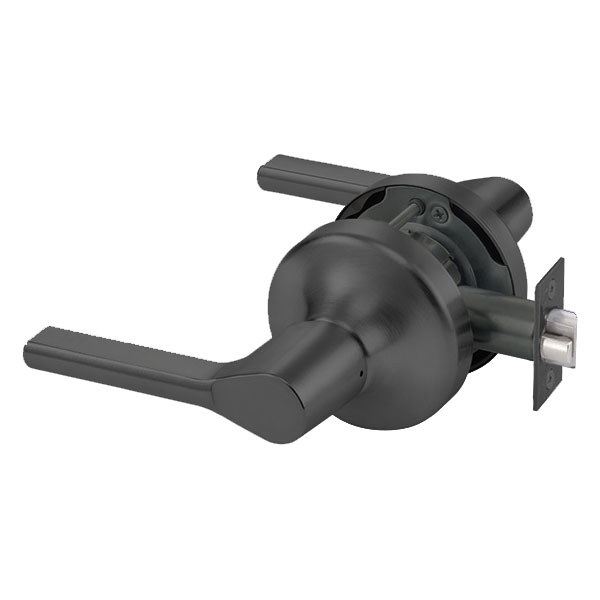

- TB – Hudson Lever, UB – Hudson Lever
Key Features
- Function: Privacy – ANSI Function No. F76A
- Operation:
- Additionally, either lever operates the latchbolt unless the inside pushbutton is pressed.
- Moreover, the inside lever is always active to ensure safe egress.
- Furthermore, the pushbutton automatically releases when the inside lever is turned or when the door closes.
- Emergency Access: Similarly, the emergency release key unlocks the door from outside (included).
- Safety: In addition, the free-wheeling lever prevents damage when locked.
- Applications: Consequently, it is ideal for bathrooms, bedrooms, and other privacy-required rooms.
- Construction: Likewise, its Grade 1 strength supports heavy-duty use.
- Handing: Finally, it is non-handed for easy installation.
Benefits
- Safe and simple privacy control with automatic unlocking
- Prevents accidental lock-ins and ensures emergency access
- Durable free-wheeling design resists vandalism and force
- Ideal for commercial, institutional, and residential use
Specifications
- ANSI/BHMA: A156.2, Series 4000, Grade 1
- Backset: 2-3/4″ standard (other options available)
- Cylinder Formats: Conventional, Large Format IC, Small Format IC
- Pins: 6-pin (when keyed cylinder format is used)
- Door Thickness: 1-3/4″ standard (1-3/8″ to 2-1/4″ range)
- Latchbolt Throw: 1/2″
- Strike: ANSI curved lip
- Handing: Non-handed
- Max Backset: 19″
- UL/ULC Listed: Yes, up to 3 hours
- Warranty: 5-year mechanical warranty
Certifications
- ANSI/SDI 250.13
- UL/cUL Fire Rated (Up to 3 Hours)
- ADA Compliant
- NFPA 80
- ASTM E1886, E1996, E330
- Florida Building Code Approved (FL# 3063)
- TAS 201, 202, 203
- ICC A117.1
- ANSI/BHMA A156.2 (Grade 1)
- ANSI/BHMA A156.41
