Accentra AU-4701LN Passage Lever | ANSI F75 – Grade 1, Augusta Lever
The Accentra 4701LN Passage Lever is designed for doors that do not require locking, providing reliable, smooth operation in high-traffic commercial environments. Its free-wheeling lever resists vandalism and lever abuse, while the robust Grade 1 construction ensures long-lasting performance.
Lever Options
- Standard Series – AU – Augusta
Available Lever Trims:

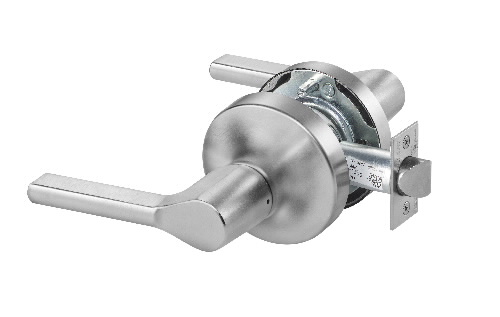

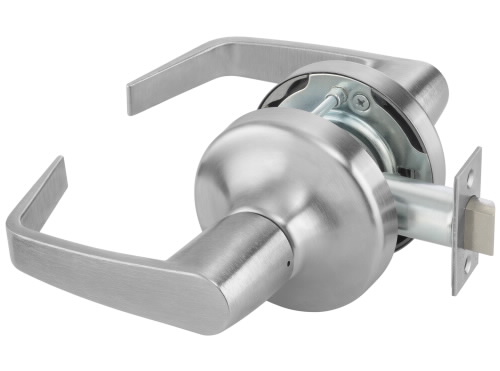

- AU-4701LN x 626 (Satin Chrome)

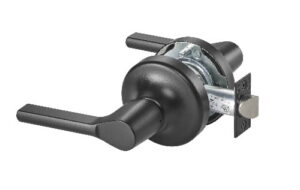

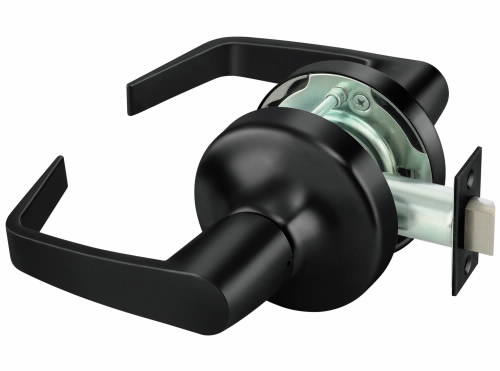

- AU-4701LN x BSP (Black Suede Powder Coat)
- AU-4701LN x 605 (Bright Brass)
- AU-4701LN x 606 (Satin Brass)

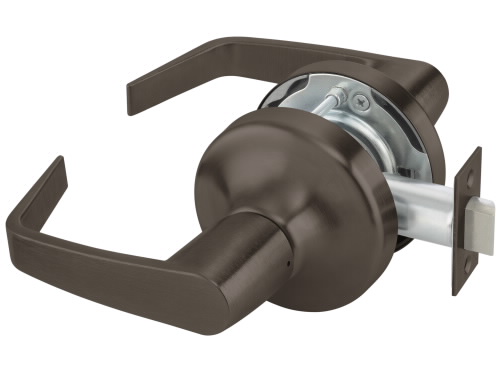

- AU-4701LN x 613E (Dark Oxidized Satin Bronze equivalent)
- AU-4701LN x 625 (Bright Chrome)
- AU-4701LN x 612 (Satin bronze)
- AU-4701LN x 619 (Satin Nickel Plated)
- AU-4701LN x WSP (White Suede Powder Coat)
Key Features

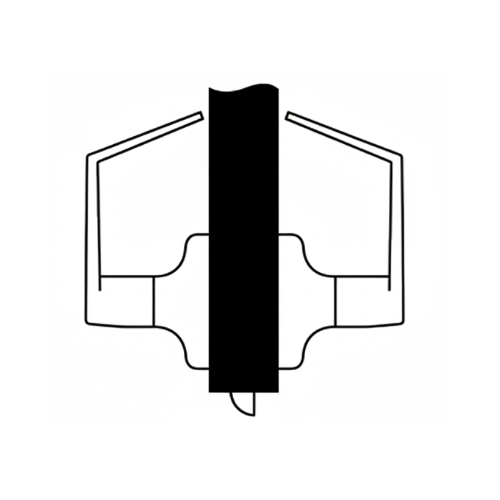

- Function: Passage / Closet – ANSI Function No. F75
- Operation: Either lever operates the latchbolt at all times (non-locking)
- Construction: High-strength Grade 1 for heavy-duty commercial applications
- Free-Wheeling Lever: Prevents vandalism and lever abuse
- Accessibility: ADA-compliant lever design for universal access
- Fire Rating: UL/cUL listed for up to 3 hours
- MicroShield Option: Available antimicrobial coating for hygiene-sensitive environments
- Finishes & Trims: 5 lever designs and 9 finish options
- Installation: Simple, consistent installation for all door preps
Benefits
- Ensures long-lasting performance under heavy usage
- Ideal for corridors, closets, and doors that do not require key control
- Resists forced entry, damage, and vandalism thanks to free-wheeling mechanism
- Provides broad application flexibility with multiple trims, finishes, and keying formats
- Backed by a 5-year mechanical warranty
- Meets rigorous commercial and safety certifications
Specifications
- ANSI/BHMA: A156.2, Series 4000, Grade 1
- Backset: 2-3/4″ standard (other options available)
- Cylinder Formats: Conventional, Large Format IC, Small Format IC
- Pins: 6-pin (when keyed cylinder format is used)
- Door Thickness: 1-3/4″ standard (1-3/8″ to 2-1/4″ range)
- Latchbolt Throw: 1/2″
- Strike: ANSI curved lip
- Handing: Non-handed
- Max Backset: 19″
- UL/ULC Listed: Yes, up to 3 hours
- Warranty: 5-year mechanical warranty
Certifications
- ANSI/SDI 250.13
- UL/cUL Fire Rated (Up to 3 Hours)
- ADA Compliant
- NFPA 80
- ASTM E1886, E1996, E330
- Florida Building Code Approved (FL# 3063)
- TAS 201, 202, 203
- ICC A117.1
- ANSI/BHMA A156.2 (Grade 1)
- ANSI/BHMA A156.41
