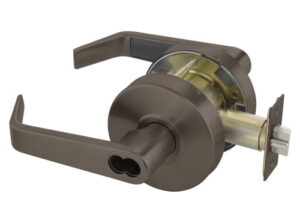

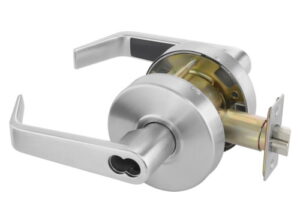

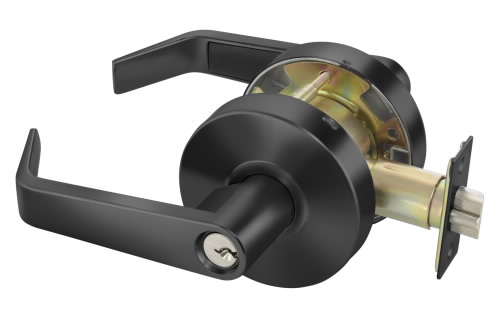

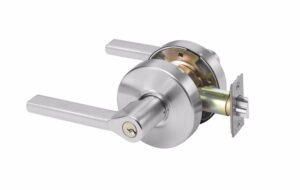

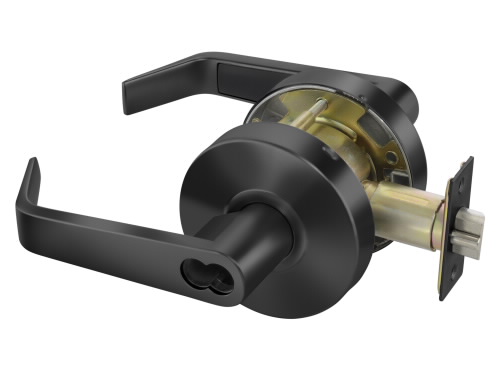

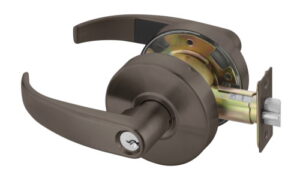

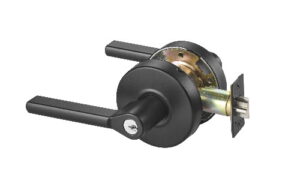

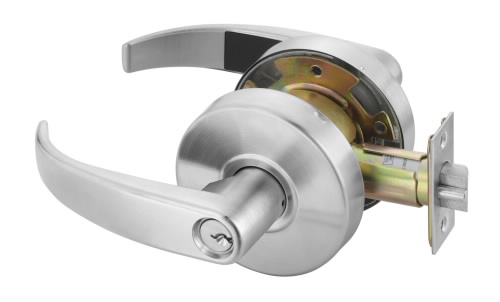

Accentra 4607LN Entry Lever (ANSI F109) – Versatile Security for Home, Office, and Entry Doors

The Accentra 4607LN Entry Lever is designed for entrance, office, and general-use doors requiring reliable, flexible access control. Featuring a deadlocking latchbolt and fully active inside lever, it allows the latchbolt to be operated from either side unless the outside lever is locked. The inside turn-button provides convenient push-and-turn locking capability, including the option to retain the outside lever in a locked position until manually released—ideal for doors needing extended or continuous security.

Engineered with Grade 2 commercial performance, the 4607LN delivers durability, ease of use, and dependable everyday protection for professional and residential spaces.

Lever Options

• Standard Series
  • AU – Augusta, MO – Monroe, PB – Pacific Beach
• Reflections Series
  • TB – Hudson Lever, UB – Hudson Lever, B-AU – Augusta Lever

Key Features

• Function: Entrance / Office – ANSI Function No. F109
• Operation:
  • Inside lever always active
  • Latchbolt operated by key on the outside or by rotating the inside lever
  • Outside lever locks when the inside turn button is pushed
• Locking Options:
  • Push-button locking from the inside
  • Push-and-turn feature retains the outside lever in a locked position
  • Lock automatically releases when inside lever is turned or key is rotated (unless retained)
• Latchbolt: Deadlocking design for added security
• Applications: Homes, offices, and general entrance doors
• Construction: Commercial Grade 2 reliability
• Handing: Field reversible for easy installation
• Available Options: 5 trims and 6 finishes for design flexibility
• ADA Compliant: Accessible lever design for universal usability
• UL/cUL Fire Rated: Up to 3 hours for added safety
• Windstorm Certified: Meets stringent local building codes
• Warranty: Backed by a 3-year mechanical warranty

Benefits

• Flexible locking options for daily or long-term security needs
• Reliable operation with automatic lock release when needed
• Durable construction suited for both commercial and residential use
• Easy to install and ADA-friendly lever operation

Specifications

• • ANSI/BHMA Code: A156.2, Series 4000LN, Grade 2
  • Backset Depth (Standard): 2-3/4″
  • Backset Range: 2-3/8″ to 2-3/4″
  • Latchbolt Throw: 1/2″
  • Door Thickness (Standard): 1-3/4″
  • Door Thickness Range: 1-3/8″ to 1-3/4″
  • Cylinder Format: Conventional, Small Format
  • Cylinder Pins: 6 pin
  • Number of Keys: 2
  • Strike Type: ANSI Curved Lip
  • Handing: Non-handed (Field Reversible)
  • UL/ULC Listed: Yes

Certifications

• ANSI/SDI 250.13 Certified
• ASTM E1886 / E1996 / E330 Certified
• Florida Building Code Approved (FL# 3063)
• UL/cUL Fire Rated – Up to 3 Hours
• NFPA 80 Compliant
• TAS 201, TAS 202, TAS 203 Certified
• ICC A117.1 & ADA Compliant
