Description

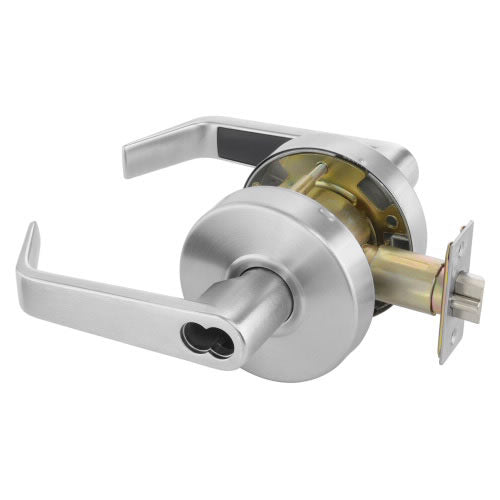

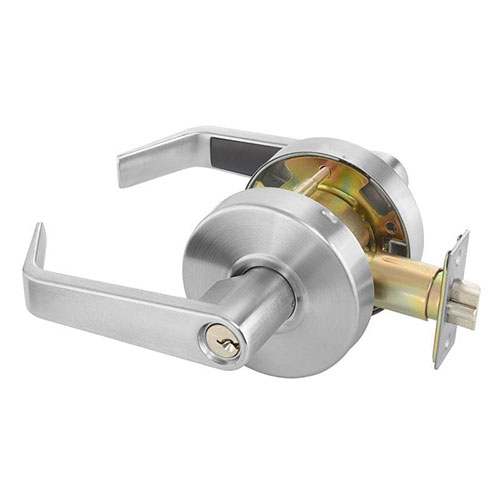

Accentra 4604LN Entry Lever (ANSI F82A) – Secure and Convenient Office Access

The Accentra 4604LN Entry Lever is designed for entrance and office doors where controlled access is required. Featuring a deadlocking latchbolt, this lock allows either lever to operate the latchbolt, except when the outside lever is locked from the inside. The inside lever includes a push-button lock that secures the outside lever and automatically releases when the inside lever is turned or when the key is rotated in the locked outside lever. This ensures smooth, reliable operation while maintaining security for office or entry doors.

Lever Options

• Standard Series
  • AU – Augusta, MO – Monroe, PB – Pacific Beach
• Reflections Series
  • TB – Hudson Lever, UB – Hudson Lever, B-AU – Augusta Lever

Key Features

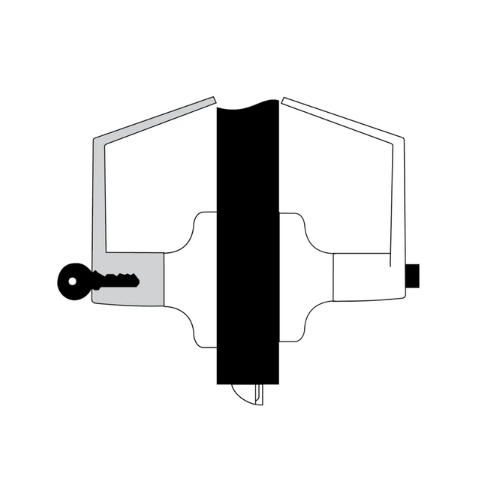

• Function: Entry / Office – ANSI Function No. F82A
• Operation:
  • Inside lever always active
  • Outside lever operable unless locked by inside button
  • Key in outside lever operates latchbolt
• Locking: Push-button on inside lever locks outside lever; automatically releases when inside lever is turned or key is rotated
• Latchbolt: Deadlocking for added security
• Applications: Entrance doors, office doors, or any door requiring controlled access
• Construction: Commercial-grade Grade 2 durability
• Handing: Field reversible for easy installation
• Available Options: 5 trims and 6 finishes for design flexibility
• ADA Compliant: Accessible lever design for universal usability
• UL/cUL Fire Rated: Up to 3 hours for added safety
• Windstorm Certified: Meets stringent local building codes
• Warranty: Backed by a 3-year mechanical warranty

Benefits

• Provides secure, controlled access for offices and entry doors
• Easy to lock/unlock from inside without a key
• Durable design suitable for commercial or institutional use
• Ensures reliable operation with deadlocking latchbolt

Specifications

• • ANSI/BHMA Code: A156.2, Series 4000LN, Grade 2
  • Backset Depth (Standard): 2-3/4″
  • Backset Range: 2-3/8″ to 2-3/4″
  • Latchbolt Throw: 1/2″
  • Door Thickness (Standard): 1-3/4″
  • Door Thickness Range: 1-3/8″ to 1-3/4″
  • Cylinder Format: Conventional, Small Format
  • Cylinder Pins: 6 pin
  • Number of Keys: 2
  • Strike Type: ANSI Curved Lip
  • Handing: Non-handed (Field Reversible)
  • UL/ULC Listed: Yes

Certifications

• ANSI/SDI 250.13 Certified
• ASTM E1886 / E1996 / E330 Certified
• Florida Building Code Approved (FL# 3063)
• UL/cUL Fire Rated – Up to 3 Hours
• NFPA 80 Compliant
• TAS 201, TAS 202, TAS 203 Certified
• ICC A117.1 & ADA Compliant
