Description

Accentra 4600LN Cylindrical Lock Strikes

Accentra 4600LN Cylindrical Lock Strikes offer a reliable fit for Accentra 4600LN locksets and are available in several strike options to match a wide range of door and frame applications. These strikes align with the latchbolt’s vertical and horizontal center lines, ensuring precise installation. Accentra 4600LN Cylindrical Lock Strikes also come in multiple lip lengths, allowing them to accommodate different frame thicknesses. To select the correct lip length, measure from the strike’s center line to the jamb edge, account for trim, and add 1/4″ (6mm) for curved lips. All strikes are reversible for added installation flexibility.

Strike Types and Options:

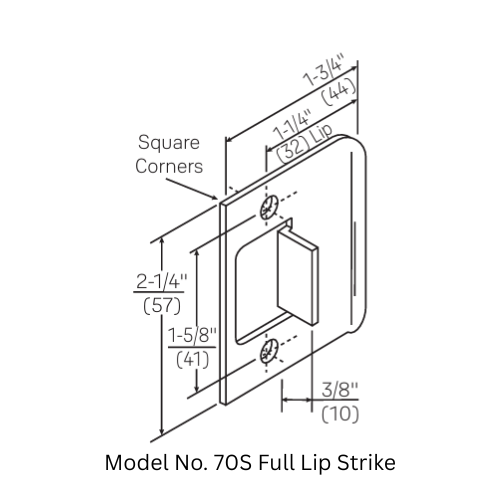

• 70S Full Lip Strike (Optional): 2-1/4″ x 1-3/4″ x 1-1/4″ with a full lip anti-rattle tab.

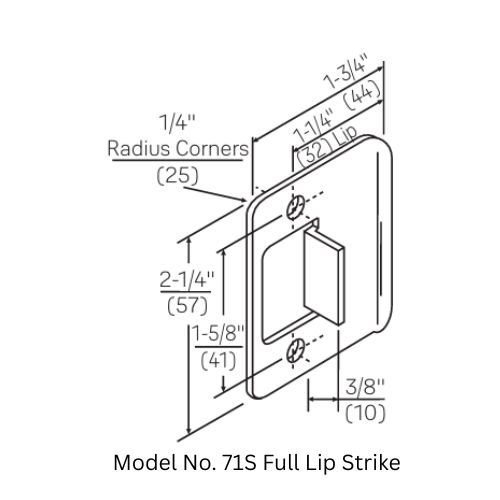

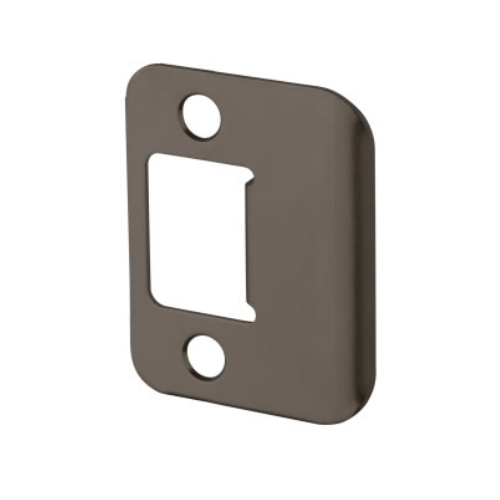

• 71S 1/4″ Radius Full Lip Strike (Optional): Same dimensions and function as the 70S, but with radius corners for easier power-tool mortising; includes anti-rattle tab.
• 202 Strike Box (Special Order): Strike box for ANSI strike applications.

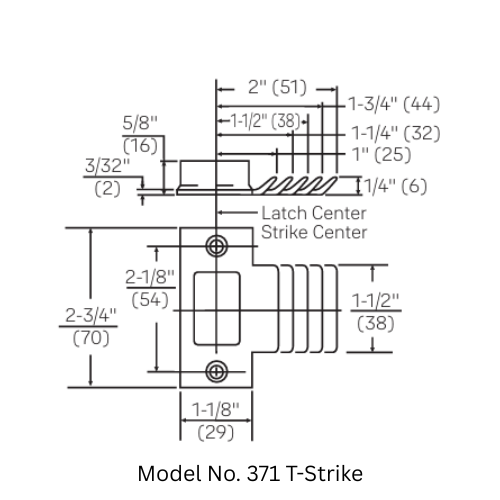

• 371 T-Strike (Optional): 2-3/4″ x 1-1/8″ x 1-1/4″ lip to center; standard for knob functions. Curved lips from 1″ to 2″ are available by special order and include a wrought strike box.

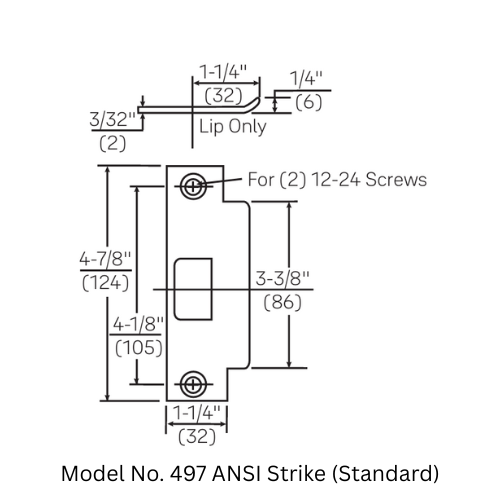

• 497 ANSI Strike (Standard): For frames prepared to ANSI/BHMA A156.115. Measures 4-7/8″ x 1-1/4″ x 1-1/4″ lip to center, with an optional 202 strike box.

Attaching Screws:

• For 371, 70S, and 71S: #8-32 x 3/4″ Phillips flat-head combination wood/machine screws
• For 497: #12-24 x 1″ Phillips flat-head combination wood/machine screws

Accentra 4600LN Cylindrical Lock Strikes deliver reliable alignment, solid performance, and durable construction. They are ideal for both residential and commercial openings where secure and accurate strike placement is essential.
