Description

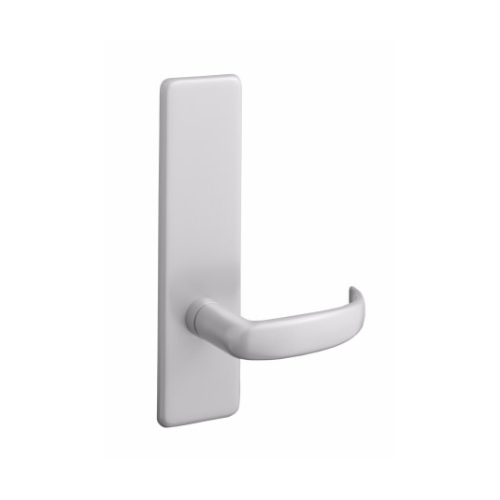

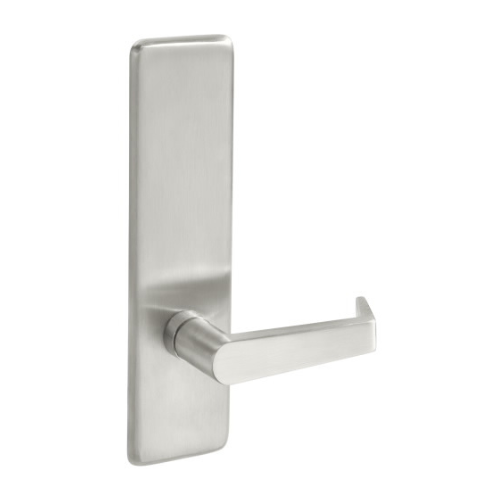

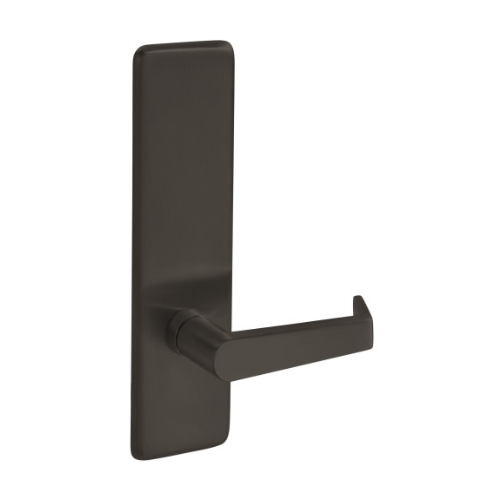

Accentra 428F Escutcheon Lever Exit Device Trim

The Accentra 428F Escutcheon Lever Trim provides easy, keyless access for doors where free passage is required. For daily use, the lever always stays unlocked while offering smooth, reliable operation. In addition, it fits standard doors and can adjust to thicker or shim-mounted doors when specified.

Certified to ANSI/BHMA A156.3 Grade 1, this trim combines strength with practical design. Furthermore, it through-bolts directly to the exit device for extra security, and its cast zinc escutcheon ensures long-lasting durability. It works with AU, MO, or PB levers and comes in multiple finishes to match existing hardware.

Key Features

• Function: Passage/Dummy Free-Wheeling (ANSI 02/14) – lever always unlocked
• Certification: ANSI/BHMA A156.3 Grade 1
• Durable Construction: Cast zinc escutcheon; through-bolted to exit device for strength
• Door Thickness: Standard 1-3/4″ (44mm); optional up to 2-1/4″ (57mm) or shim-mounted
• Dimensions: 2-1/2″ x 9-1/2″ x 7/16″ (64mm x 241mm x 11mm)
• Lever Designs: AU, MO, PB only
• Cylinder: Not included (rim cylinders sold separately)
• Finishes: 630, 689, 691, 693, 695
• Warranty: 1-year limited warranty

Compatibility

• For use with Accentra/Yale 6000, 2100, and 1800 Series exit devices

This trim is ideal for offices, schools, and commercial areas where free passage is essential. Moreover, it combines simple operation with dependable, code-compliant performance, ensuring safety and convenience every day.
