Description

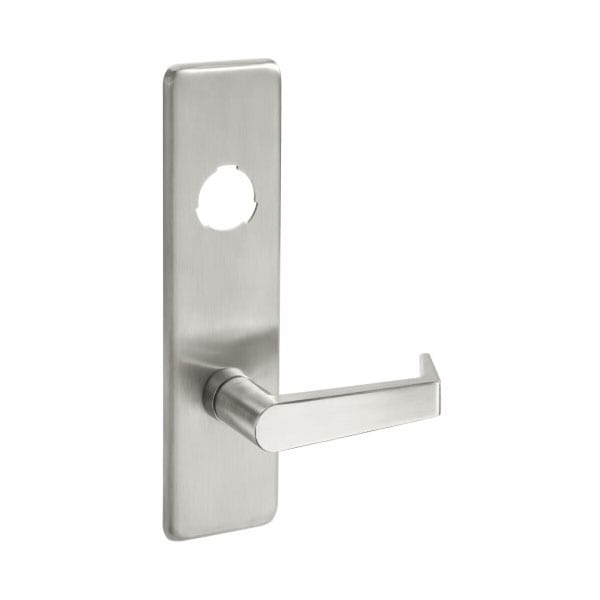

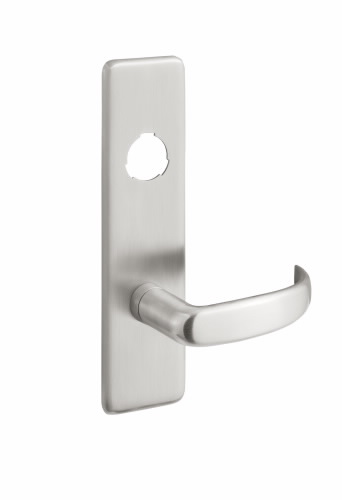

Accentra 426F Escutcheon Lever Trim Exit Device
The Accentra 426F Escutcheon Lever Trim provides secure and durable access control for exit device applications requiring classroom or storeroom functionality (ANSI 08/09). Designed for use with Accentra rim exit devices, this trim delivers reliable performance in high-traffic commercial and institutional environments.
Part of the 420F Series, the trim features a strong cast zinc escutcheon and through-bolts directly to the exit device for added strength and long-term durability. Certified to ANSI/BHMA A156.3 Grade 1, it meets rigorous standards for safety and performance.
The Accentra 426F fits standard 1-3/4″ (44mm) doors, with options available for doors up to 2-1/4″ (57mm) or shim-mounted devices when specified at the time of order. It is available only with AU, MO, or PB lever designs and supports a range of architectural finishes to match commercial hardware packages.
A rim cylinder is required for operation and is sold separately.
Key Features
- Function: Classroom or Storeroom (ANSI 08/09)
- Certification: ANSI/BHMA A156.3 Grade 1
- Construction: Strong cast zinc escutcheon
- Mounting: Through-bolted to exit device for added strength
- Door Thickness:
- Standard: 1-3/4″ (44mm)
- Optional: Up to 2-1/4″ (57mm) or shim-mounted (specify on order)
- Dimensions: 2-1/2″ x 9-1/2″ x 7/16″ (64mm x 241mm x 11mm)
- Lever Designs: AU, MO, PB only
- Cylinder: Rim cylinder required (sold separately)
- Finishes: 630, 689, 691, 693, 695
- Warranty: 1-year limited warranty
Compatibility
-
For use with Accentra 6000, 2100, and 1800 Series exit devices
