Description

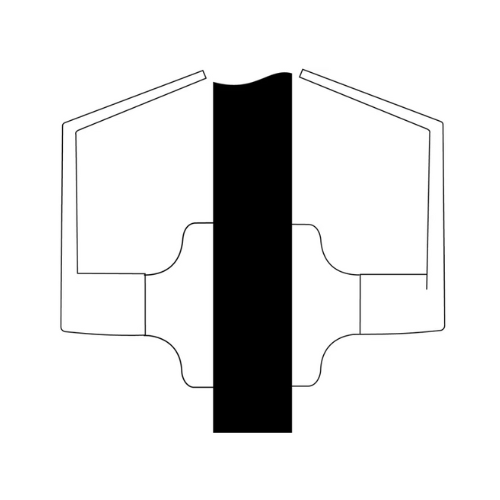

Accentra AU-355LN-D Double Dummy Trim Lever

The Accentra AU-355LN-D Double Dummy Trim Lever is designed to provide decorative, non-operational handles on both sides of a door. It delivers the appearance of functional hardware without any mechanical operation, making it ideal for interior doors, closets, and double-door setups focused on aesthetics.

Lever Options

• Standard Series: AU – Augusta

Key Features

• Function: Double Dummy Trim – Non-Operational
• Operation: Decorative levers on both sides, no latchbolt operation
• Construction: Through-bolted design ensures secure installation and durability
• Accessibility: ADA-compliant lever for accessible operation
• Warranty: 5-year mechanical warranty
• Applications: Interior doors, closets, and double-door setups requiring matching trim

Benefits

• Provides the appearance of functional levers on both sides
• Easy to install with through-bolts
• Maintains a uniform, polished look across paired doors

Specifications

• ANSI/BHMA Code: A156.2
• Backset (Standard): 2 3/4″
• Optional Backsets: 2 3/8″ min, 6″ max
• Door Thickness: 1 3/8″ min to 2 1/4″ max
• Cylinder Format: Conventional, Large Format, Small Format
• Pins: 6-pin (where applicable)
• Handing: Non-handed
• Latchbolt Throw: 1/2″
• Strike: ANSI Curved Lip
• UL/ULC Listed: Yes

Certifications

• NSI/SDI 250.13
• ASTM E330
• Florida Building Code Approved (FL# 3063)
• ADA Compliant
• UL/cUL Fire-Rated Up to 3 Hours
• ASTM E1996
• ASTM E1886
• NFPA 80 Compliant
• TAS 201 / TAS 202 / TAS 203
• ICC A117.1
• ANSI/BHMA A156.2, Series 4000, Grade 2
• ANSI/BHMA A156.41
