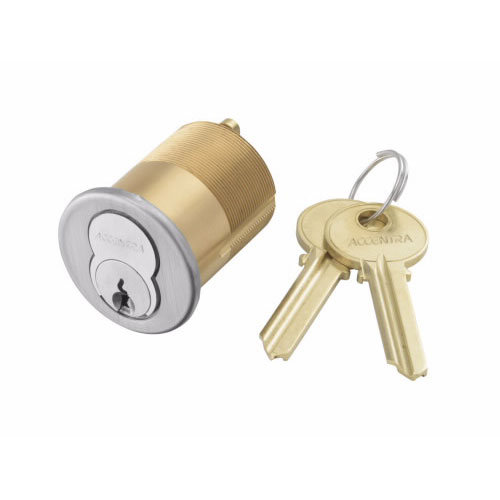

Accentra 2196 LFIC Mortise Cylinder

The Accentra 2196 LFIC Mortise Cylinder provides secure and flexible operation for mortise and auxiliary applications. It supports standard, hotel, security, and high-security keying, making it ideal for commercial doors that need easy rekeying and adaptable systems.

This 6-pin LFIC cylinder measures 1-1/2″ in length and comes 0-bitted, ready for keying. It also includes a KC1 straight cam to operate smoothly, while you must order the control key separately. Additionally, it works with most mortise locks and auxiliary hardware.

To fit different applications, the cylinder comes with multiple recessed collar options. For example, it includes the 1765.656 collar for standard LFIC mortise cylinders. It also provides the 1765.75 collar for KRM200(F) keyed removable panic and fire-rated mullions and the 1765.5 collar for keyed removable windstorm mullions. These options help align the cylinder properly and improve overall reliability.

Key Features:

• Large format interchangeable core (LFIC) mortise cylinder
• Model: 2196, 1-1/2″ length
• 6-pin LFIC core, supplied 0-bitted and ready to be keyed
• Para keyway
• Includes KC1 straight cam
• Control key not included (sold separately)
• Designed for mortise and auxiliary applications
• Supports standard, hotel, security, and high-security keying

Cylinder Collar Configurations:

• 1765.656 – 21/32″ recessed collar for LFIC mortise cylinders
• 1765.75 – Collar for KRM200(F) keyed removable panic and fire-rated mullions
• 1765.5 – Collar for keyed removable windstorm mullions

This mortise cylinder provides a complete, adaptable solution for Accentra systems that require interchangeable core flexibility and reliable performance.
