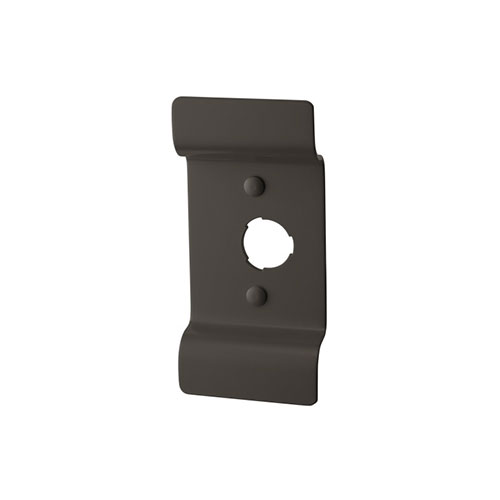

Accentra 217F Nightlatch Pull Exit Device Trim

The Accentra 217F Nightlatch Pull Exit Device Trim is designed for use with Accentra 2100 and 1800 Series exit devices, offering secure key-controlled access on the pull side of the door. For added security, this nightlatch pull trim allows the key to retract the latchbolt and meets ANSI Function 03 requirements.

Additionally, the trim fits standard 1-3/4″ doors and accepts a 1-1/8″ rim cylinder, which is sold separately. When ordering, specify thicker doors up to 2-1/4″ or shim-mounted exit devices to ensure proper fit. Because the trim features a non-handed design, installers can use it on either left- or right-hand doors.

Finally, the nightlatch pull plate includes a compact pull plate and finger pull that provide a firm, comfortable grip during daily use. As a result, it pairs well with Accentra and Yale exit devices and comes in several architectural finishes. The rim cylinder is not included, and the trim includes a 1-year warranty.

Key Features:

• For Accentra 2100 & 1800 Series exit devices
• Nightlatch pull trim with key retracting latchbolt
• ANSI Function: 03
• Accepts 1-1/8″ rim cylinder (sold separately)
• Thru-bolted construction
• Standard door thickness: 1-3/4″
• Specify for doors up to 2-1/4″ or shim-mounted devices
• Pull plate: 3-1/2″ x 3-3/4″ x 3/32″
• Finger pull: 3-1/2″ x 6-3/4″ x 1/8″
• Non-handed
• Rim cylinder not included
• Finishes: 689, 691, 695
• 1-year warranty
