The Accentra 1100 Series is a heavy-duty, surface-mounted door closer engineered for commercial applications where ease of installation, durability, and cost-effectiveness are top priorities. Designed for versatility, this Grade 1 closer features a rugged aluminum body and a full rack-and-pinion operation for smooth, consistent door control. Whether for a high-traffic retail entrance or a fire-rated interior door, the 1100 Series provides a reliable solution with multiple mounting options in a single package.

Model Options

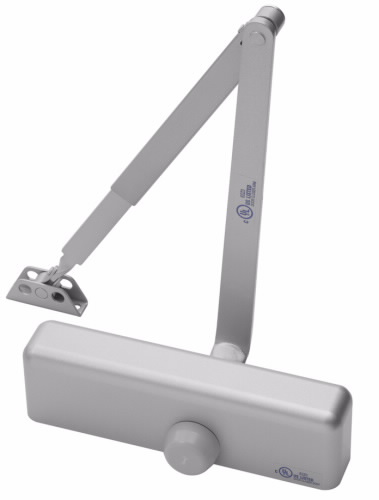

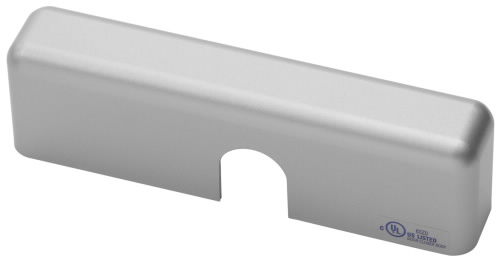

• 1101BF/1101BFCOV: Non-hold open, adjustable spring sizes 1–4 (available with or without cover)

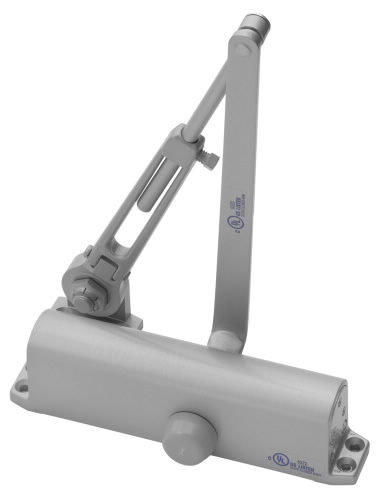

• 1111BF: Hold open, adjustable spring sizes 1–4
• 1104BC: Non-hold open, fixed spring size 4

Key Features

• Operation: Full rack and pinion for precise control and longevity
• Adjustability: * Adjustable backcheck valve to cushion the door during the opening cycle
  • Independent adjustable valves for closing speed and latching speed
• Mounting: Tri-packed for three installation types: regular arm, parallel arm, or top jamb
• Construction: Durable aluminum body with rugged internal components
• Handing: Non-handed; works for both left and right-hand doors
• Hardware: Auxiliary door stop required (not included)
• Warranty: 5-year limited mechanical warranty

Benefits

• Accessible: The Tri-packed design allows a single model to be used for multiple mounting applications, reducing inventory needs.
• Economical: High-grade materials lead to a longer life cycle, resulting in fewer replacements and lower maintenance costs.
• Customizable: Non-handed design and adjustable spring sizes (1–4) allow the closer to be tailored to specific door weights and user needs.
• User-Friendly: Specifically designed for ease of use and simple installation on standard commercial doors.

Specifications

• Brand: Accentra
• Usage: Standard to Heavy-Duty Commercial
• ANSI/BHMA Standard: A156.4, Grade 1
• Body Material: Aluminum
• Door Thickness: Standard 1-3/4″ (Minimum 1-3/4″; Maximum 1-3/4″)
• Handing: Non-handed
• Mounting Options: Parallel Arm (Push Side), Regular Arm (Pull Side), Top Jamb (Push Side)
• Finishes: 689 (Aluminum), 690 (Statuary Bronze), BSP (Black Suede Powder)

Certifications

• ANSI/BHMA Grade 1: Certified for high-traffic, heavy-duty performance
• UL/cUL Listed: Fire-rated for use on doors up to 3 hours
• ADA Compliant: Meets ANSI/BHMA A117.1 accessibility requirements for low opening force (on BF models)
• NFPA 80 Compliant: Meets requirements for hinges and hardware on fire doors
